Product Description
|
Technical parameters |
||||
|
Certificates |
|
|||
|
Insulating material, Flammability rating |
PC、PA66，V2 |
|||
|
Dimensions |
||||
|
Width/Length/Height(mm) |
39.8/9/14.5 |
|||
|
Electric parameter |
||||
|
Rated voltage(V) |
400 |
|||
|
Nominal current(A) |
32 |
|||
|
Cross section（mm2） |
0.08-4 |
|||
|
Withstand voltage（kV） |
4 |
|||
|
Stripping length（mm） |
10 |
|||
|
Ordering data |
||||
|

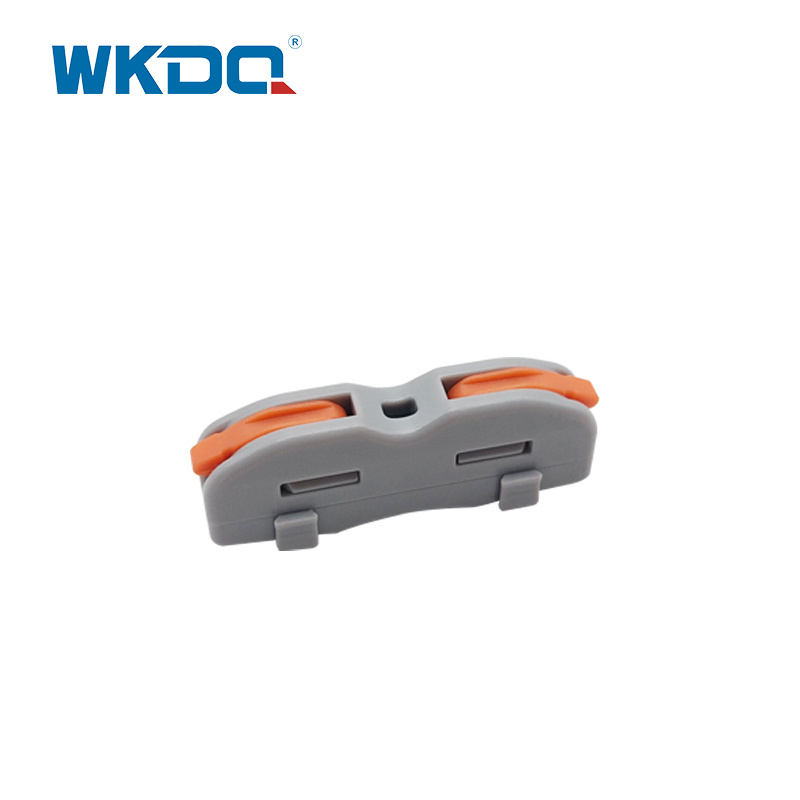

Compact splicing connector |
Part No. |
Order No. |
Pcs/Pkt. |
|
|
222-P421 |
100501030 |
100 |
||
