Technical parameters |
|||||
|
Circuit Diagram |
|
||||
|
Certificates |
|
||||
|
Insulating material, Flammability rating |
PA£¬V0 |
||||
|
Dimensions |
|||||
|
Width/Length/Height(mm) |
5/28/15 |
||||
|
Permissible (mA) ¢Ù ¢Ú |
|||||
|
Permissible range(with reference to Un) |
See diagram |
||||
|
Typical input current at Un (mA) |
14 7 |
||||
|
Typical response time at Un (ms) 5 5 |
|||||
|
Typical release time at Un (ms) |
2.5 2.5 |
||||
|
Output data |
|||||
|
Contact type |
1PDT 1PDT |
||||
|
Contact material |
AgSnO AgSnO,hard gold-plated |
||||
|
MAX. switching voltage |
250V AC/DC 30V AC/36V AC |
||||
|
Minimum switching voltage |
5V(at 100mA) 100mA(at 10mA) |
||||
|
Limiting continuous current |
6A 50mA |
||||
|
Maximum switching-on current |
10A(4s) 50mA |
||||
|
Minimum switching current |
10mA(at 12v) 1mA(at 24V) |
||||
|
General data |
|||||
|
Test voltage(winding/contact) |
4kV AC(50Hz,1min) |
||||
|
Ambient temperature(operation) |
-40¡æ-85¡æ |
||||
|
Nominal operating mode |
100£¥operating factor |
||||
|
Mechanical service life |
2*10cycles |
||||
|
Standerds/regulations |
IEC 60664,EN50178,EN61810-1 |
||||
|
Mounting position/mounting |
Any/in rows with zero spacing |
||||
|
Ordering data |
|||||
|
Description |
Part No. |
Color |
Order No. |
Pcs/Pkt. |
|
|

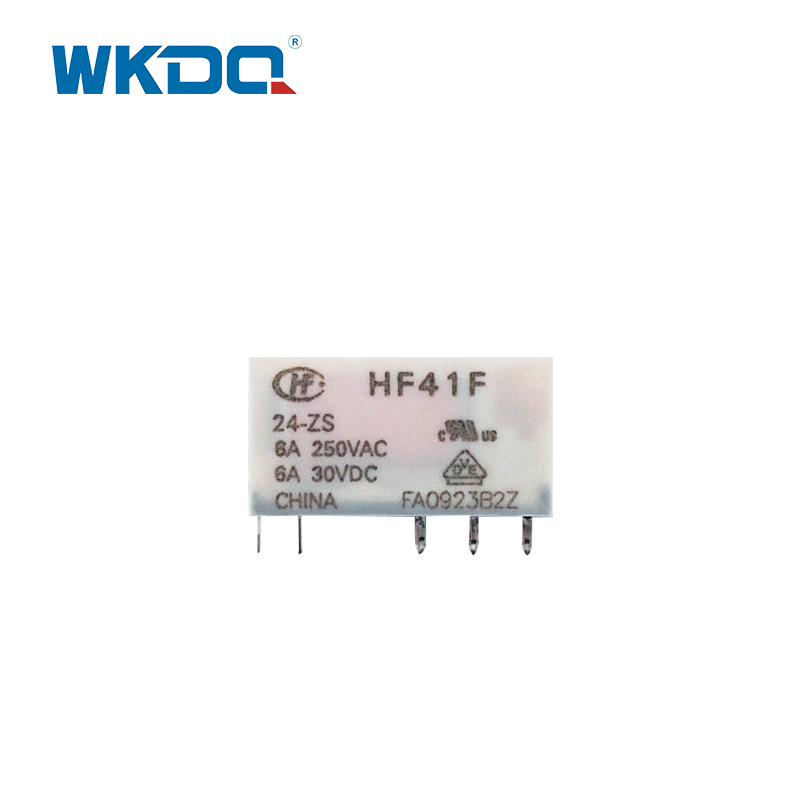

Plug-in miniature power relays,with power contacts |
|||||
|
¢Ù5V DC |
HF41F 5V |
- |
101002001 |
100 |
|
|
¢Ú12V DC |
HF41F 12V |
- |
101002002 |
100 |
|
|
¢Û24V DC |
HF41F 24V |
- |
101002003 |
100 |
|
