Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

3.5/76.7/40.1

Maximum electrical data

Imax(A)

13.5

Umax(V)

250

Maximum bridge current(A)

17.5

Electric parameter

Rated voltage(V)

250

Nominal current(A)

13.5

Nominal cross section(mm²)

1.5

Connection capacity(mm²)

Rigid conductor

0.14-1.5

Flexible conductor

0.14-1.5

Ordering data

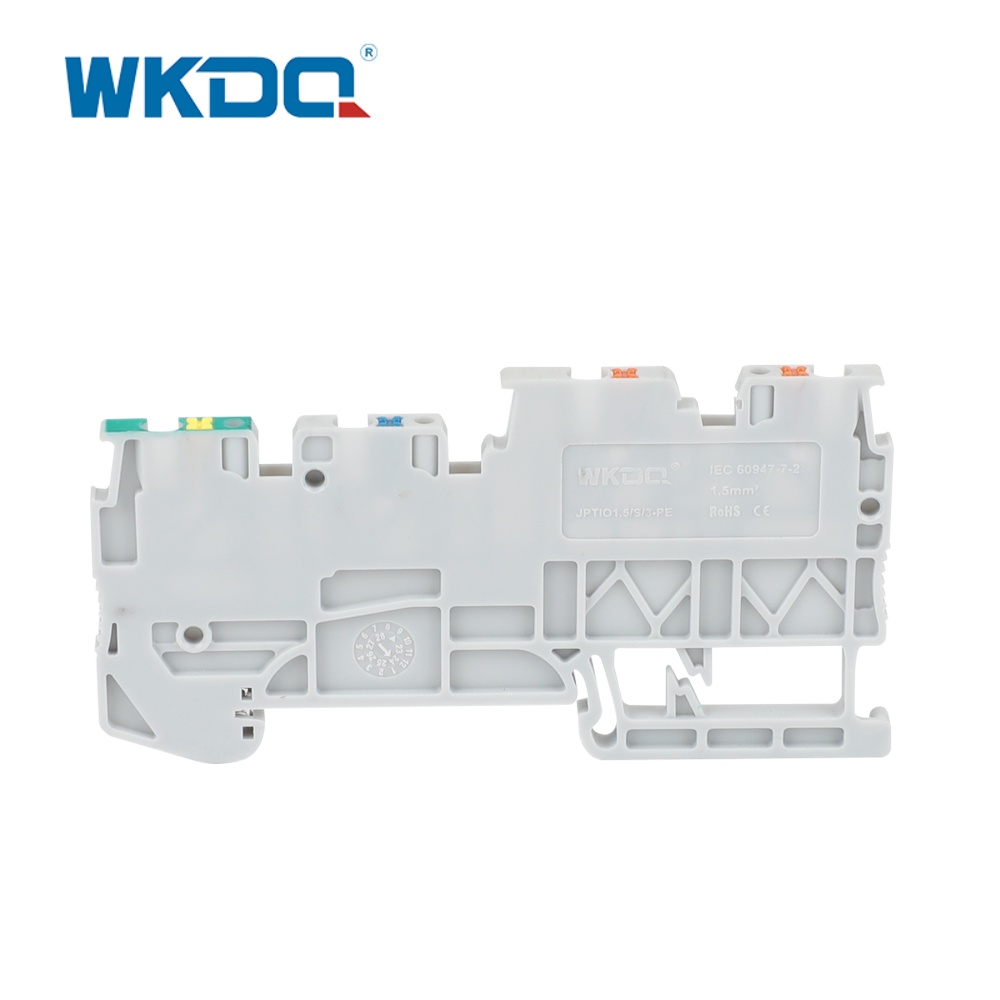

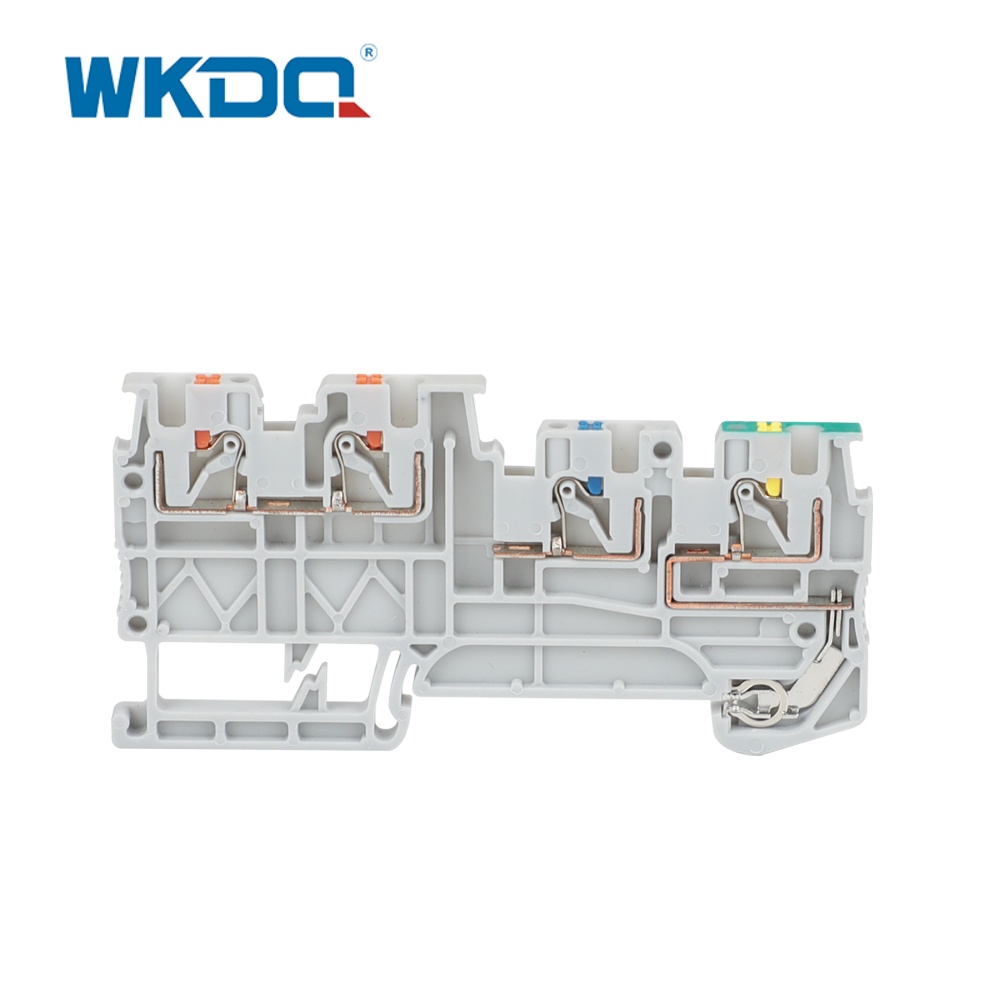

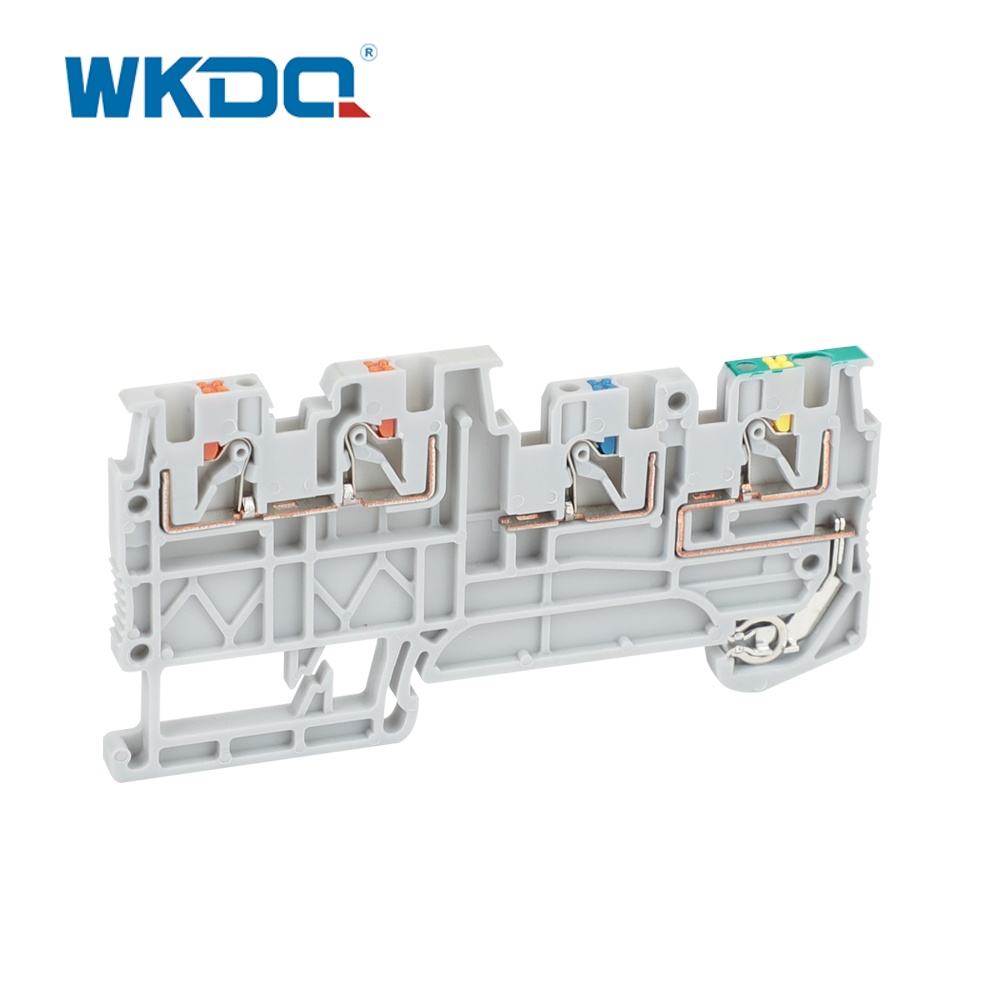

Three-conductor Sensor/actual Ground Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

JPTIO1.5/S/3-PE

Yellow/Green

100106025

100

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Three-conductor Sensor/actuator Terminal Block

JPTIO1.5/S/3

Grey

100105061

100

-

Orange

-

-

End cover

D-JPTIO2.5/3

Grey

100203024

100

Partition plate

-

-

-

-

Plug-in Bridge

Seats

2

FBS2-3.5RD/BU

Red/Blue

100212002RD/BU

100

3

FBS3-3.5RD/BU

Red/Blue

100212003RD/BU

100

4

FBS4-3.5RD/BU

Red/Blue

100212004RD/BU

100

5

FBS5-3.5RD/BU

Red/Blue

100212005RD/BU

100

10

FBS10-3.5RD/BU

Red/Blue

100212001RD/BU

50

50

FBS50-3.5RD

Red

100212034RD

20

Marker strip

Central marker

ZB3.5

Blank

100222001

100

ZB3.5

Standard numbers

100222002

100

ZB3.5

Customized words

100222003

100

Side and center markings

ZBFM3.5

Blank

100222019

100

ZBFM3.5

Standard numbers

100222020

100

ZBFM3.5

Customized words

100222021

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
