Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

28.3/97.4/57.9

Maximum electrical data

Imax(A)

290

Umax(V)

800

Electric parameter

Rated voltage(V)

800

Nominal current(A)

290

Connection capacity(mm2)

35-150

Hexagon screw inner size

8＃

Ordering data

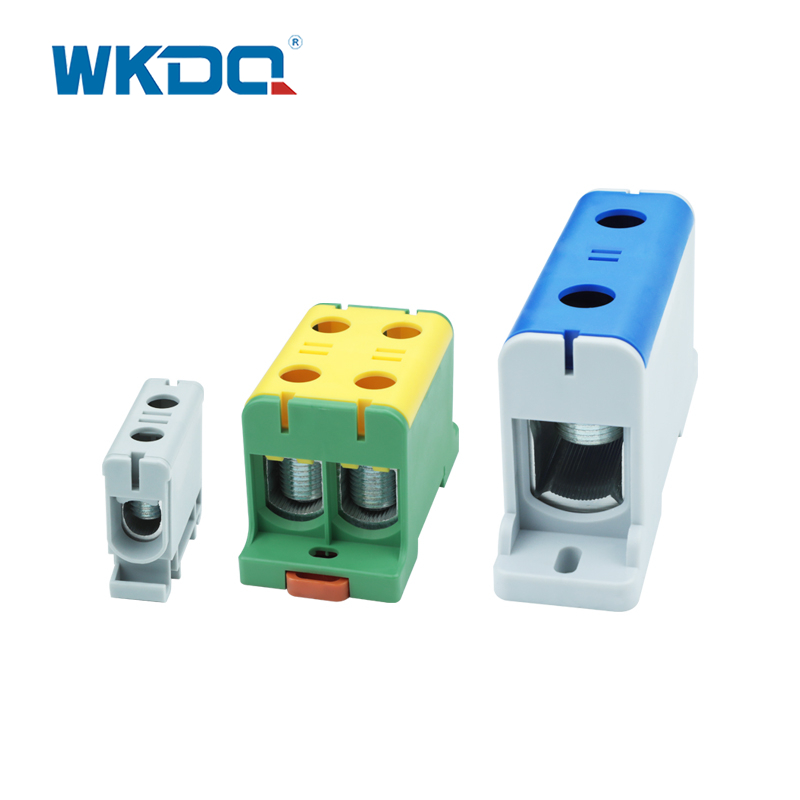

Ground Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

WKL150-PE

Yellow/Green

100422005

6

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Terminal Block

WKL150

Grey

100421005

6

WKL150 BU

Blue

100421005BU

6

Tool:Hex Wrench

WKT-BS1.5/10

-

104103004

-

Merker Carrter

JKLM3

-

100221004

100

Marker strip

Central marker

ZB8

Blank

100222013

100

ZB8

Standard numbers

100222014

100

ZB8

Customized words

100222015

100
