Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

17.5/49.1/42.8

Maximum electrical data

Imax(A)

145

Umax(V)

800

Electric parameter

Rated voltage(V)

800

Nominal current(A)

145

Connection capacity(mm2)

2.5-50

Hexagon screw inner size

5＃

Ordering data

 Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

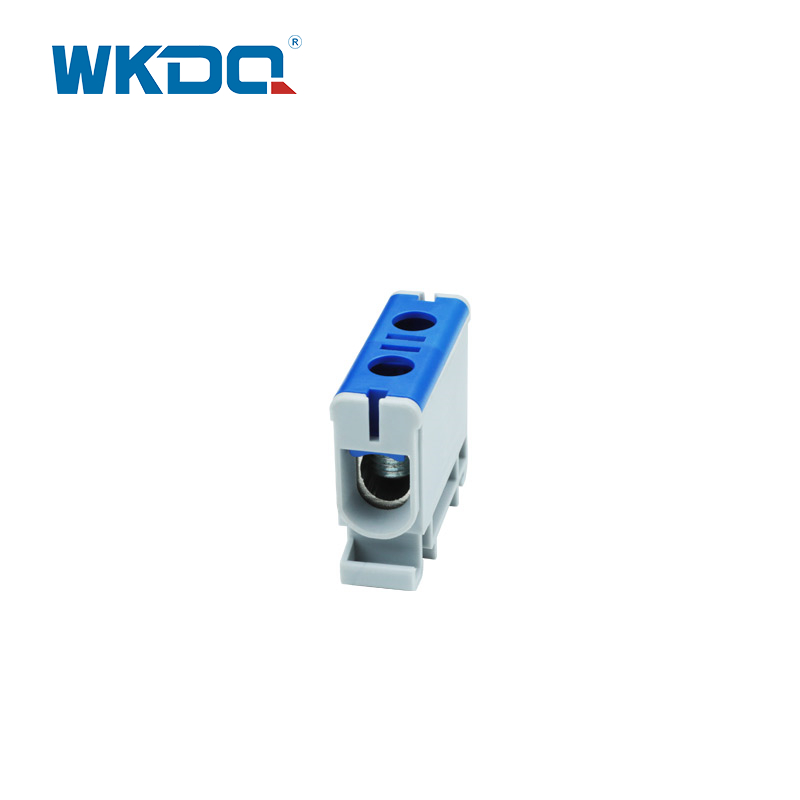

WKL50

Grey

100421001

25

WKL50 BU

Blue

100451001BU

25

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Ground Terminal Block

WKL50-PE

Yellow/Green

100422001

25

Tool:Hex Wrench

WKT-BS1.5/10

-

104103004

-

Merker Carrter

JKLM3

-

100221004

100

Partition plate

-

-

-

-

Marker strip

Central marker

ZB8

Blank

100222013

100

ZB8

Standard numbers

100222014

100

ZB8

Customized words

100222015

100
