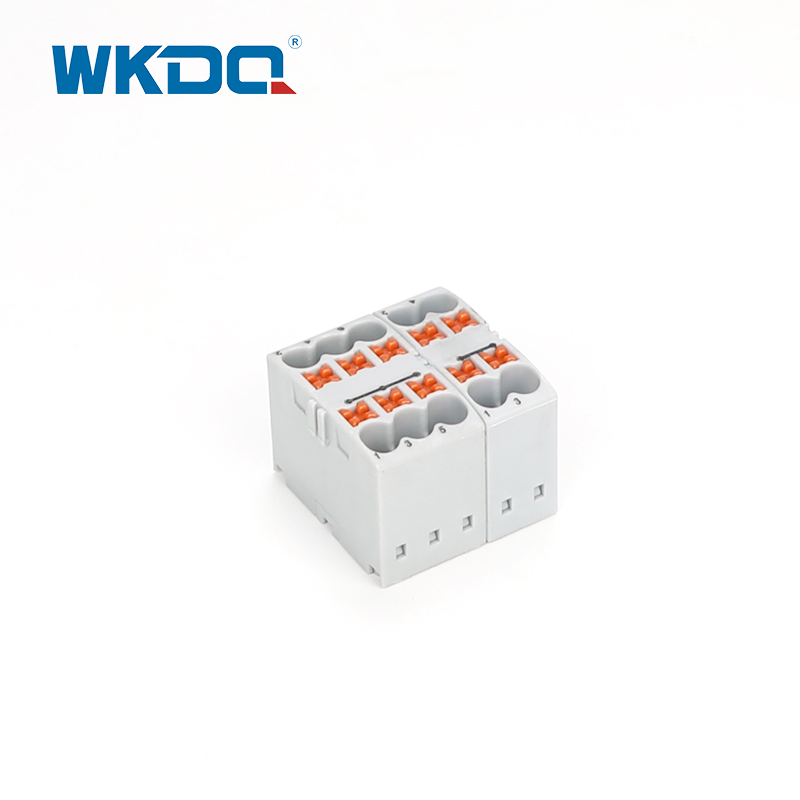

Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

6/28.6/21.8

Maximum electrical data

Imax(A)

27

Umax(V)

450

Maximum bridge current(A)

-

Electric parameter

Rated voltage(V)

450

Nominal current(A)

24

Nominal cross section(mm2)

2.5

Connection capacity(mm2)

Rigid conductor

0.14-4

Flexible conductor

0.14-2.5

Ordering data

Distribution Block

Part No.

Color

Order No.

Pcs/Pkt.

JPTFIX2X2.5

Grey

100411001

50

JPTFIX2X2.5 BK

Black

100411001BK

50

JPTFIX2X2.5 BU

Blue

100411001BU

50

JPTFIX2X2.5 RD

Red

100411001RD

50

JPTFIX2X2.5 YE

Yellow

100411001YE

50

JPTFIX2X2.5 GN

Green

100411001GN

50

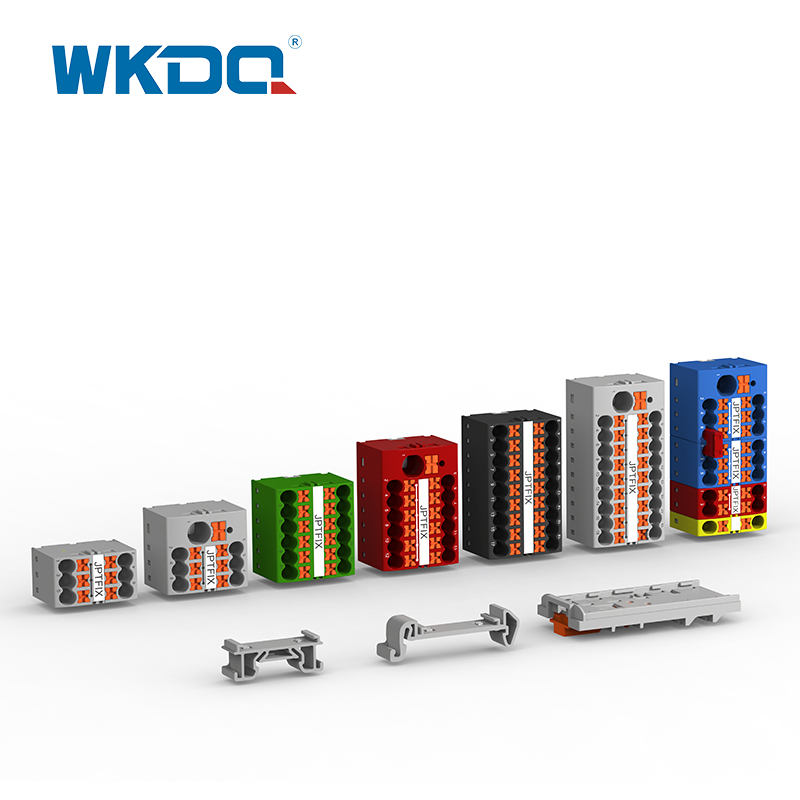

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

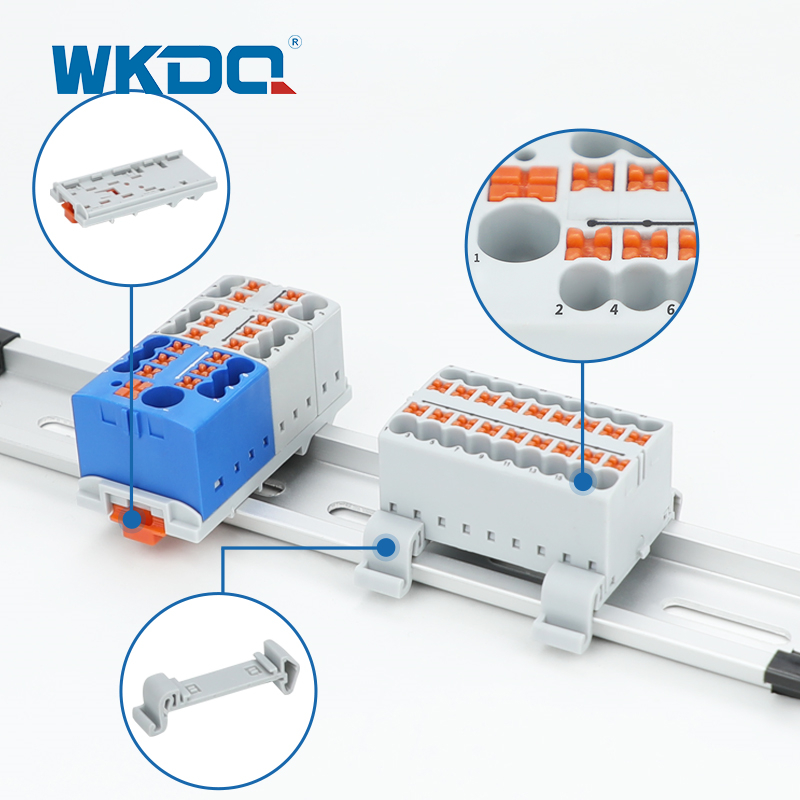

NS35 DIN Rail Adapter(Vertical alignment)

JPTFIX2.5-NS35

Grey

100416003

20

NS15 DIN Rail Adapter

JPTFIX2.5-NS15A

Grey

100416002

100

NS35 DIN Rail Adapter

JPTFIX2.5-NS35A

Grey

100416001

100

Mounting Flange(Screw-on fixing)

JPTFIX-F

Grey

100416004

100

JKLM3

Grey

100221004

100

Plug-in Bridge

Seats

2

FBS 2-5

Red

100212012

200
