Technical parameters

Product name

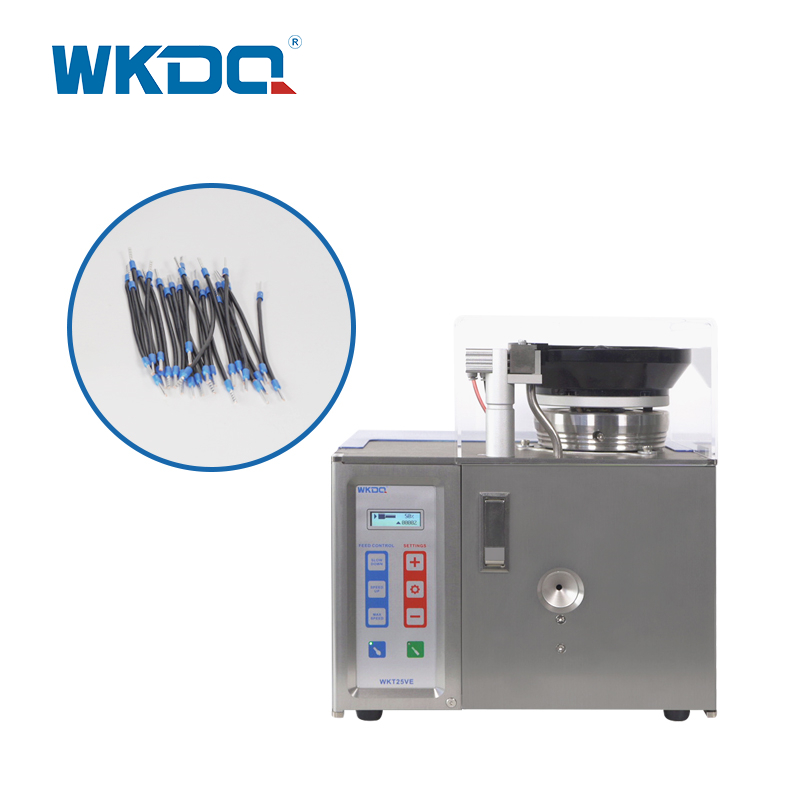

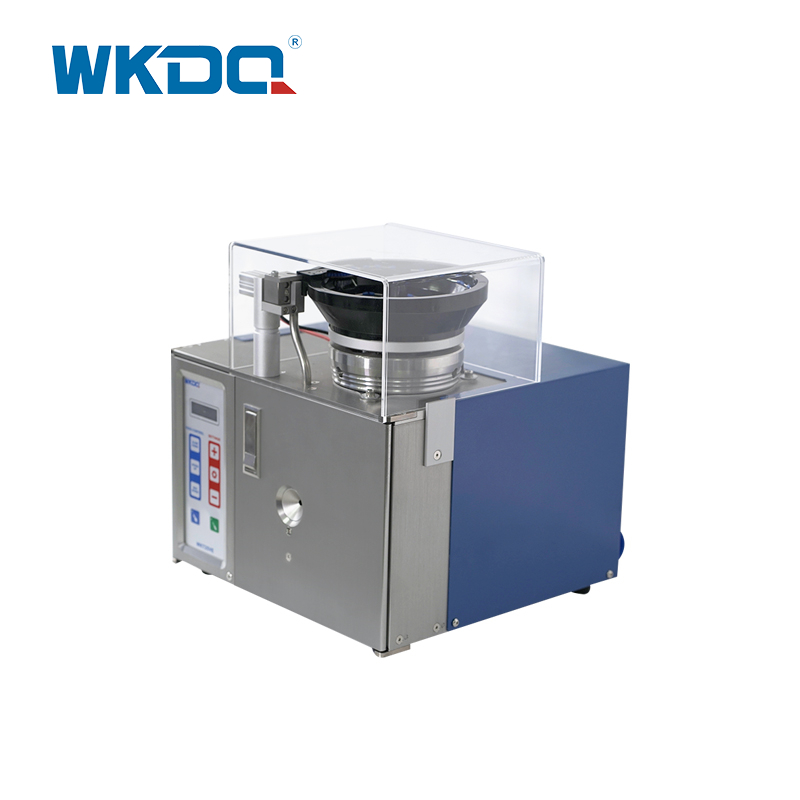

Automatic wire stripping and pressing machine for Tubular terminals

Part No.

WKT2.5VE

WKT4VE、WKT6VE Can be customized

Stripping length

8-12mm can be customized

Production capacity

3 seconds/wire

Control method

Touch panel, electronic control, pneumatic control

Operation mode

Automatically triggers to start

/Hand operation

Applicable wire

BVR solid wire 0.5-4mm²；Flexible wire 0.5-2.5mm²

Terminal supply

Vibration plate convey tubular end automatically

Crimping method

Horizontal crimping from left and right

Replace product

Only need 5 seconds to replace other specification products

Rated power

AV220V 50Hz

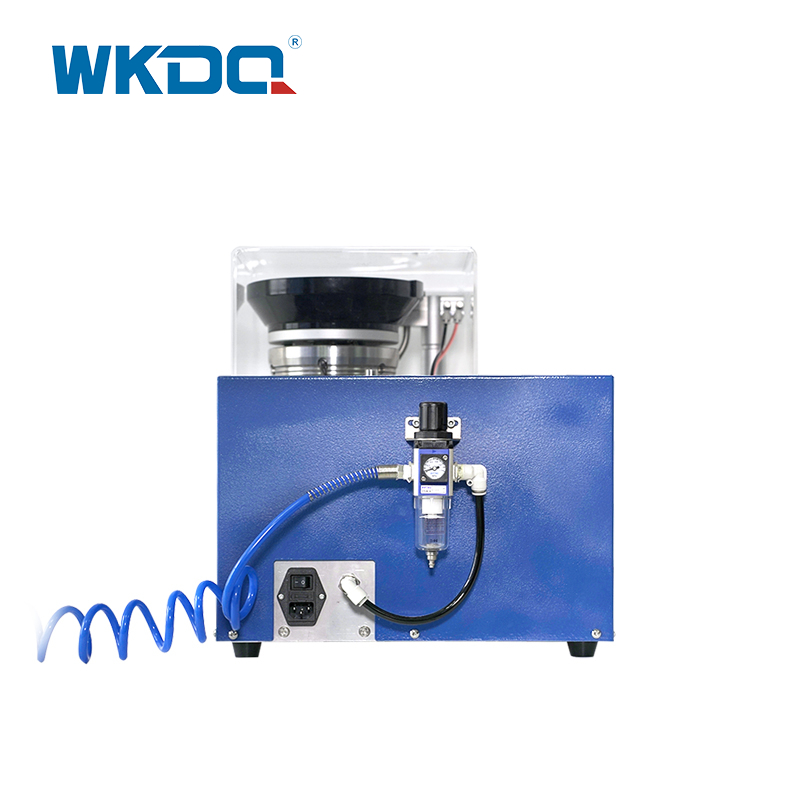

Working pressure

0.3-0.8MPA（Access to dry air source not less than0.3MPA）

Operating temperature

-10/40℃

Weight

Around 30kgs

Overall dimension

42cm×40cm×39cm

Features

Touch man-machine interface numerical control operation

Stripping through the terminal without reverse wire

Horizontal crimping from left and right

Fool-proof design automatically triggers to start

Ordering data

Automatic wire stripping and pressing machine

Part No.

Order No.

Pcs/Pkt.

WKT2.5VE

104101101

1
