Technical parameters

Certificates

Insulating material, Flammability rating

PA，V0

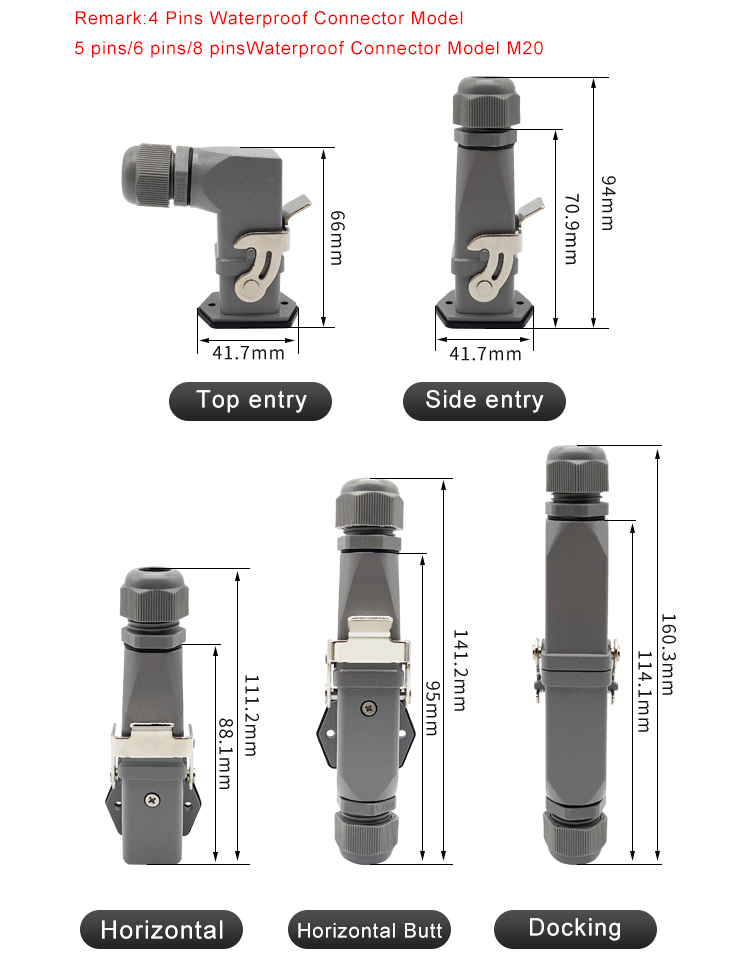

Dimensions

Width/Length/Height(mm)

34.8/45.3/104.3

Electric parameter

Nominal current(A)

10

Rated voltage(V)

230

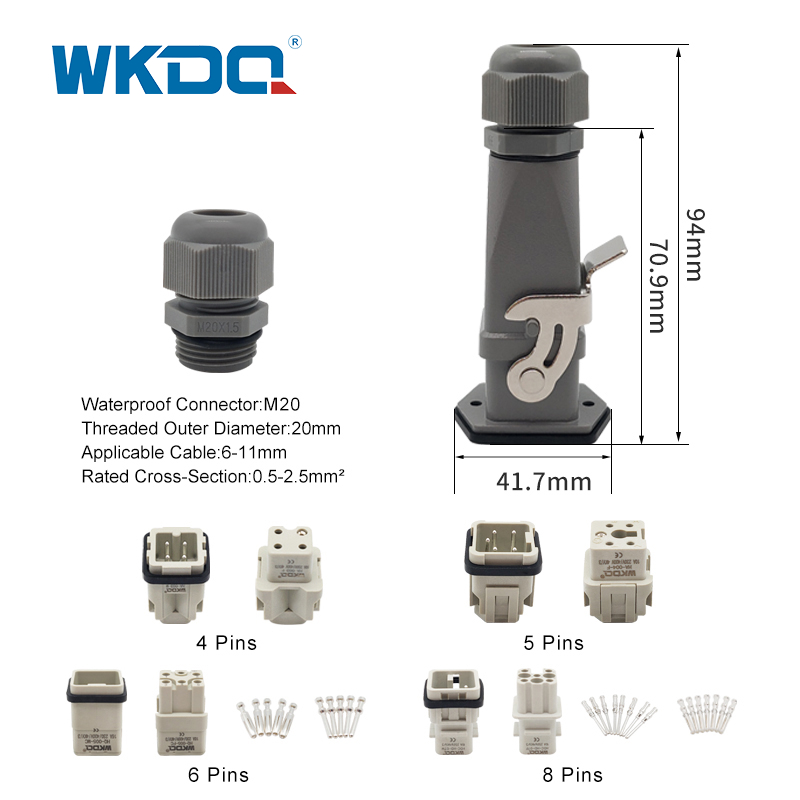

Number of contact pins

4,5,6,8

Pollution level

3

Rated impulse withstand voltage

4KV

Insulation resistance

≥10¹⁰Ω

Working humidity range

-40℃...+125℃

Working Voltage by UL/CSA

600V

Removable times

≥500

Ordering data

WHE Heavy duty connector

Part No.

Order No.

Pcs/Pkt.

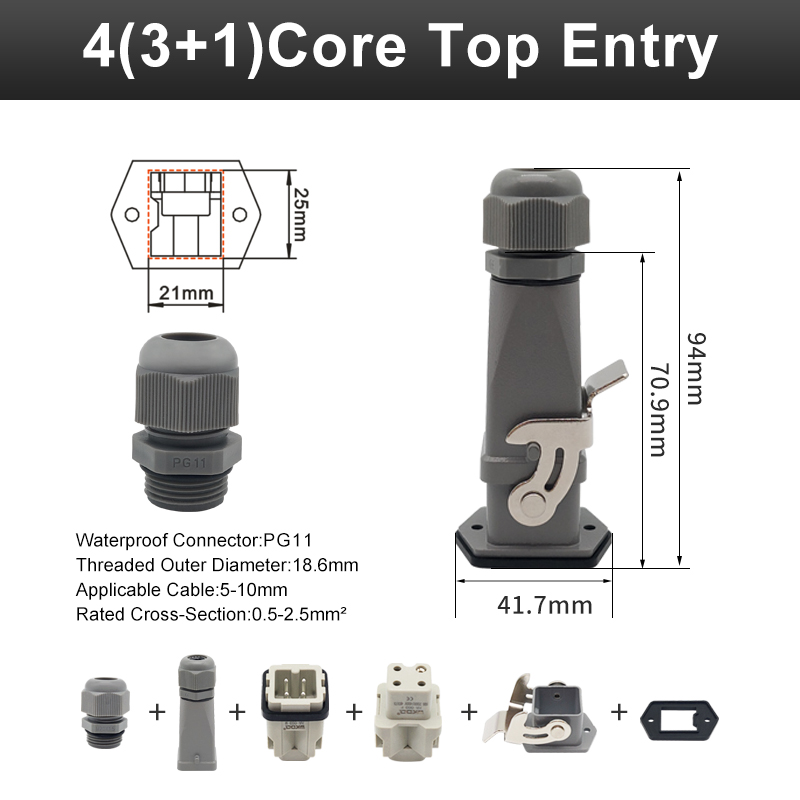

WHA04D（Top entry）

100506005

1
