Technical parameters

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

80.5/140/138

Electric parameter

Nominal current(A)

16

Rated voltage(V)

500

Number of contact pins

6,10,16,24,32,48

Pollution level

3

Rated impulse withstand voltage

6KV

Insulation resistance

≥10¹⁰Ω

Working humidity range

-40℃...+125℃

Working Voltage by UL/CSA

600V

Removable times

≥500

Ordering data

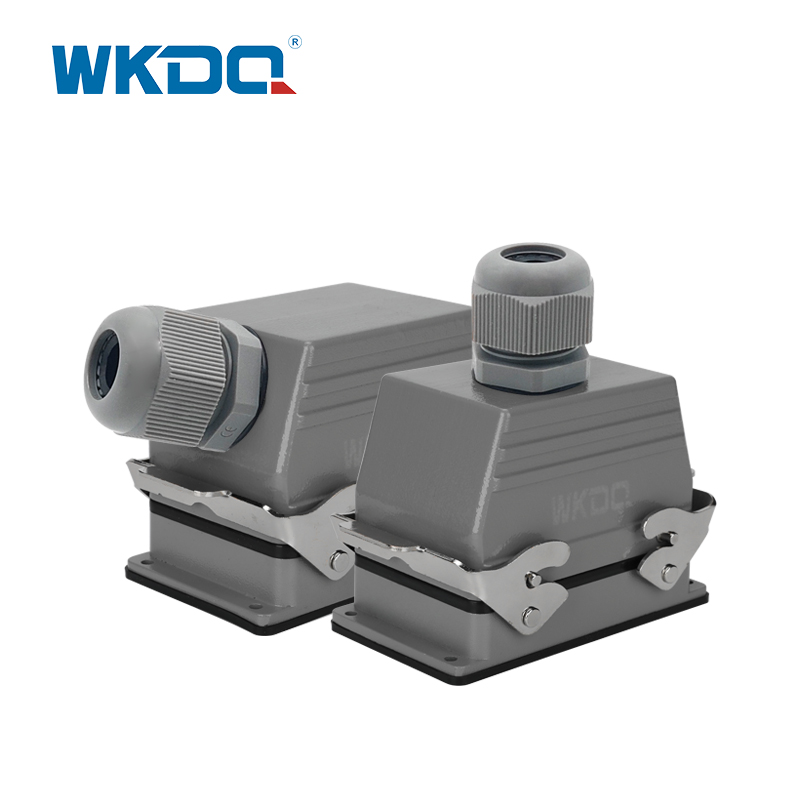

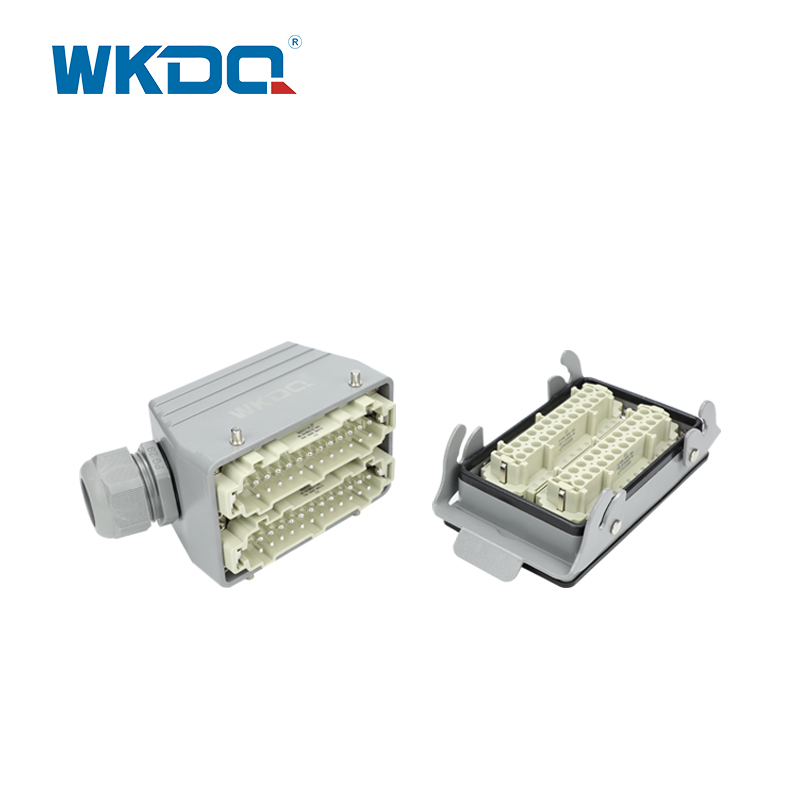

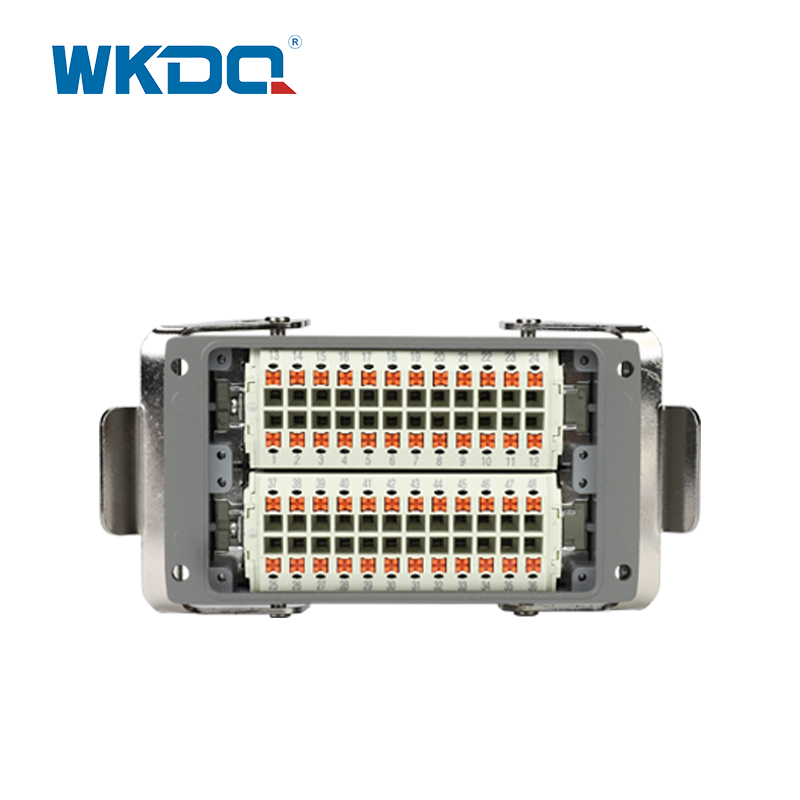

WHE Heavy duty connector

Part No.

Order No.

Pcs/Pkt.

WHE48D（Top outlets）

100507012

1
