Technical parameters

Circuit Diagram

11 00

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

5.2/30.5/31.5

Maximum electrical data

Imax(A)

32

Umax(V)

500

Maximum bridge current(A)

24

Electric parameter

Rated voltage(V)

500

Nominal current(A)

24

Nominal cross section(mm2)

2.5

Connection capacity(mm2)

Rigid conductor

0.2-4

Flexible conductor

0.2-2.5

Ordering data

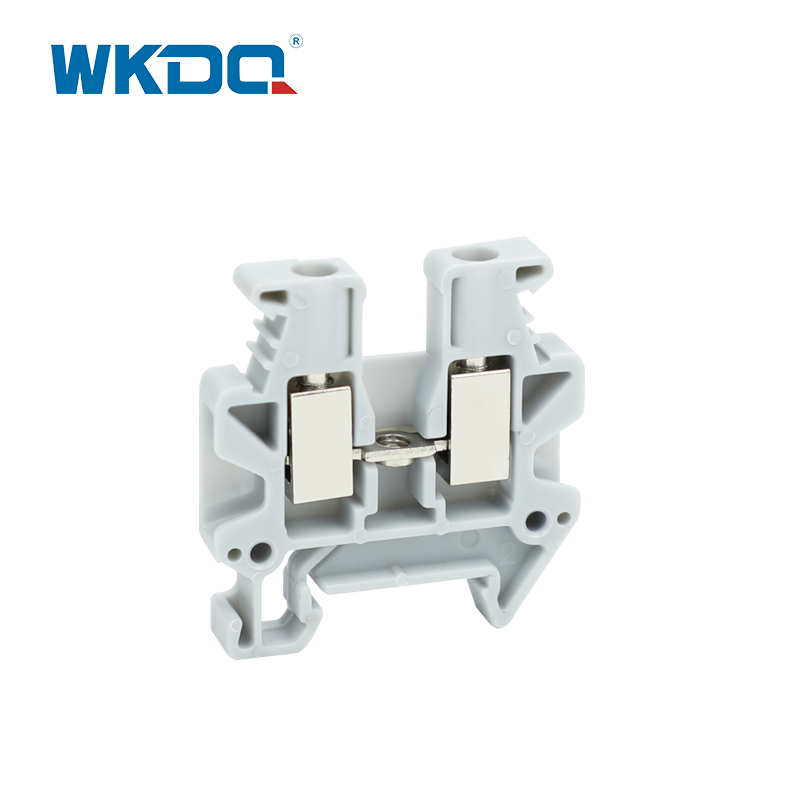

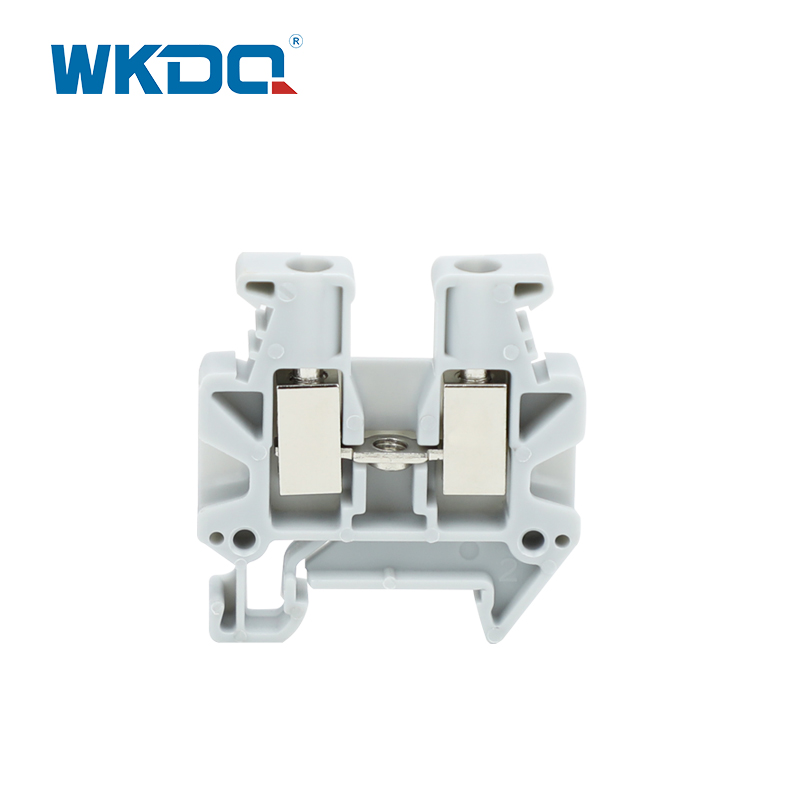

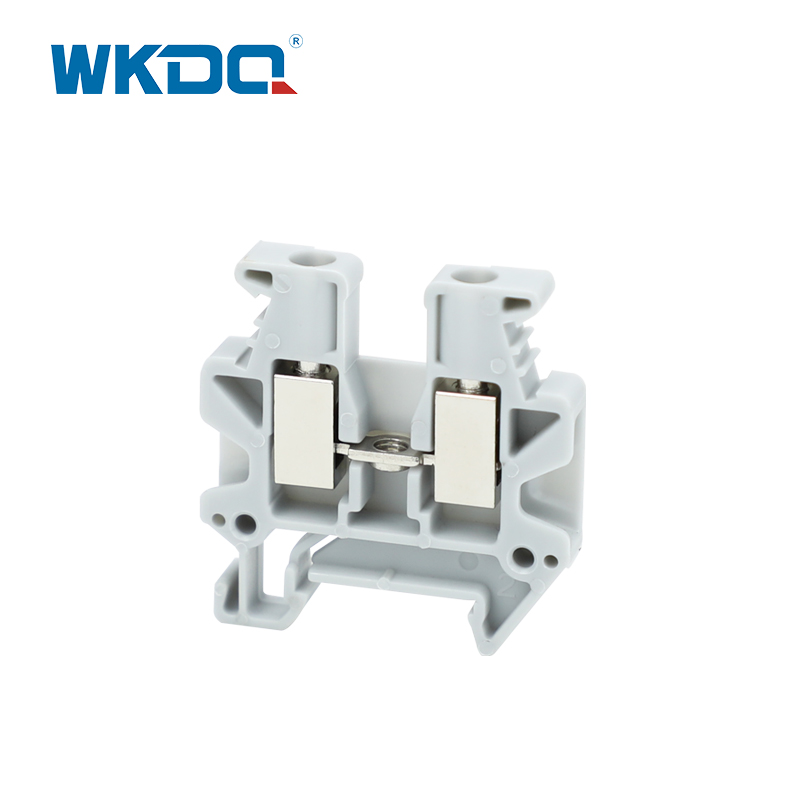

Miniature screw type Terminal  Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JMBK3/E-Z

Grey

100101049

100

-

Black

-

-

-

Blue

-

-

-

Red

-

-

-

Yellow

-

-

-

Green

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Universal Ground Terminal Blocks

-

Yellow/Green

-

-

End cover

D-JMBK/E

Grey

100201017

100

Partition plate

-

Grey

-

-

Separating plate

-

Grey

-

-

Fixed bridge

Seats

2

-

Sliver

100211085

-

3

JEBRNI3-5N

Sliver

-

-

4

-

Sliver

-

-

10

JEBRNI10-5N

Sliver

100211001

20

Insertion bridge

Seats

2

JEB2-5

Grey

100211066

200

3

JEB3-5

Grey

100211067

200

10

JEB10-5

Grey

100211068

100

Marker strip

ZB5

Blank

100222007

100

ZB5

Standard numbers

100222008

100

ZB5

Customized words

100222009

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
