Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

5/25.2/22

Maximum electrical data

Imax(A)

18

Umax(V)

400

Maximum bridge current(A)

17.5

Electric parameter

Rated voltage(V)

500

Nominal current(A)

17.5

Nominal cross section(mm2)

1.5

Connection capacity(mm2)

Rigid conductor

0.14-1.5

Flexible conductor

0.14-1.5

Ordering data

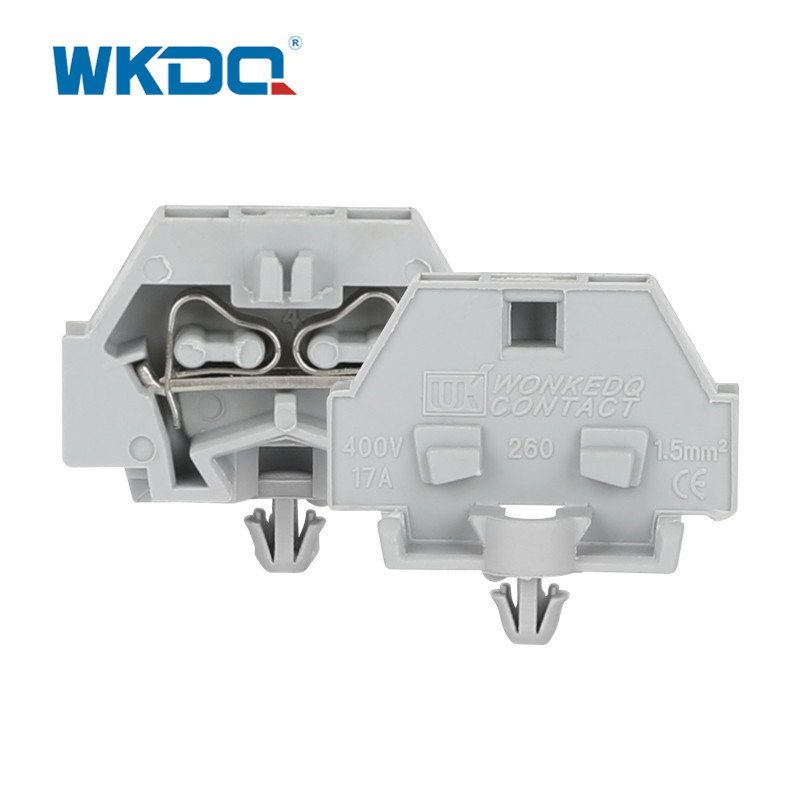

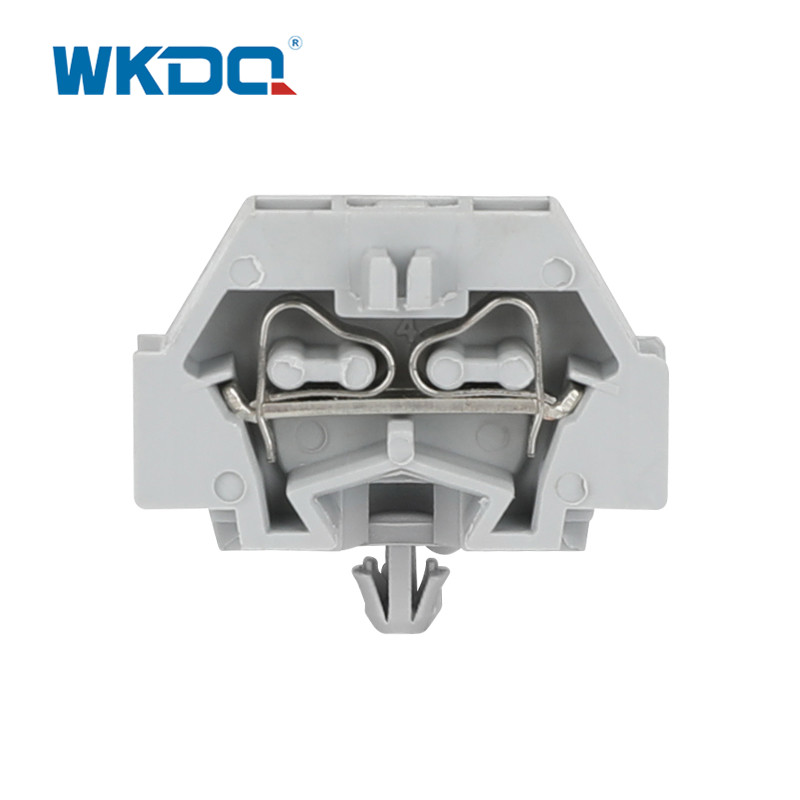

Mini Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

260-301B

Grey

100109022

200

260-301B WH

White

100109022WH

200

260-301B BU

Blue

100109022BU

200

260-301B YE

Yellow

100109022YE

200

260-301B OG

Orange

100109022OG

200

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Ground terminal block

260-301B YENG

Yellow/Green

100109022YENG

200

End cover

260-361B

-

100205018

200

Partition plate

-

-

-

-

Adjacent bridge

-

Grey

-

-

Alternate Bridge

-

Grey

-

-

Mounting Foot

209-123

Grey

100223006

100

Push Button

261-ZTJ

White

100224033

-

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
