Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

6.2/47/46.9

Maximum electrical data

Imax(A)

41

Umax(V)

1000

Maximum bridge current(A)

32

Electric parameter

Rated voltage(V)

1000

Nominal current(A)

32

Nominal cross section(mm2)

4

Connection capacity(mm2)

Rigid conductor

0.14-6

Flexible conductor

0.25-4

Ordering data

Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

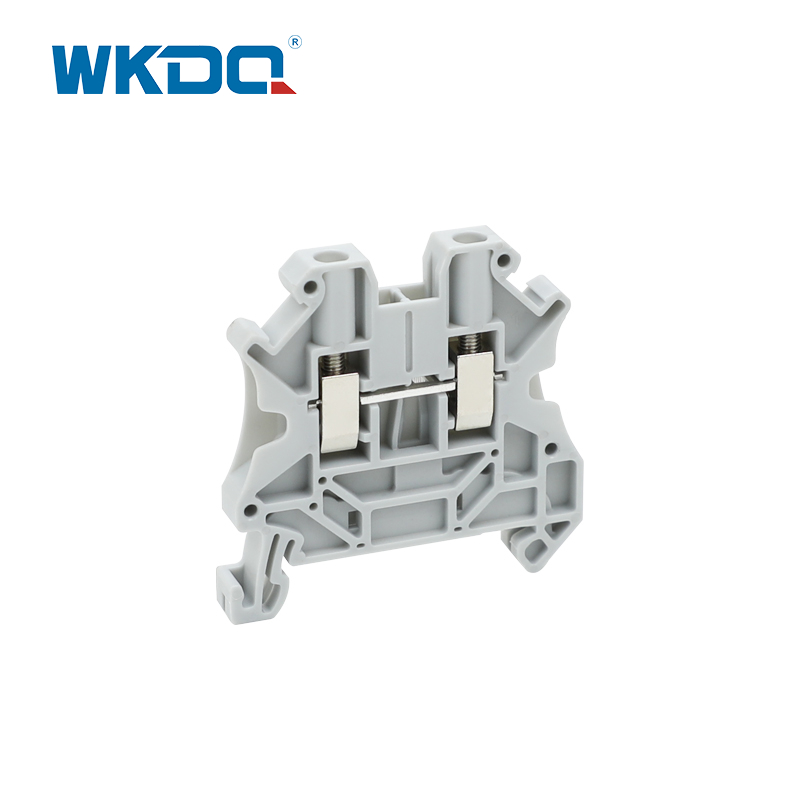

JUT4

Grey

100113002

100

-

Black

-

-

JUT4 BU

Blue

100113002BU

100

-

Red

-

-

-

Yellow

-

-

-

Green

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Ground Terminal Block

JUT4-PE

Yellow/Green

100114002

100

End cover

D-JUT2.5/10

-

100207001

100

Partition plate

-

-

-

-

Separating plate

-

-

-

-

Plug-in bridge

Seats

2

FBS2-6

Red

100212017

200

3

FBS3-6

Red

100212018

100

4

FBS4-6

Red

100212019

100

5

FBS5-6

Red

100212020

100

10

FBS10-6

Red

100212016

50

Marker strip

ZB6

White(blank)

100222010

100

ZB6

White(Standard numbers)

100222011

100

ZB6

White(Customized words)

100222012

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
