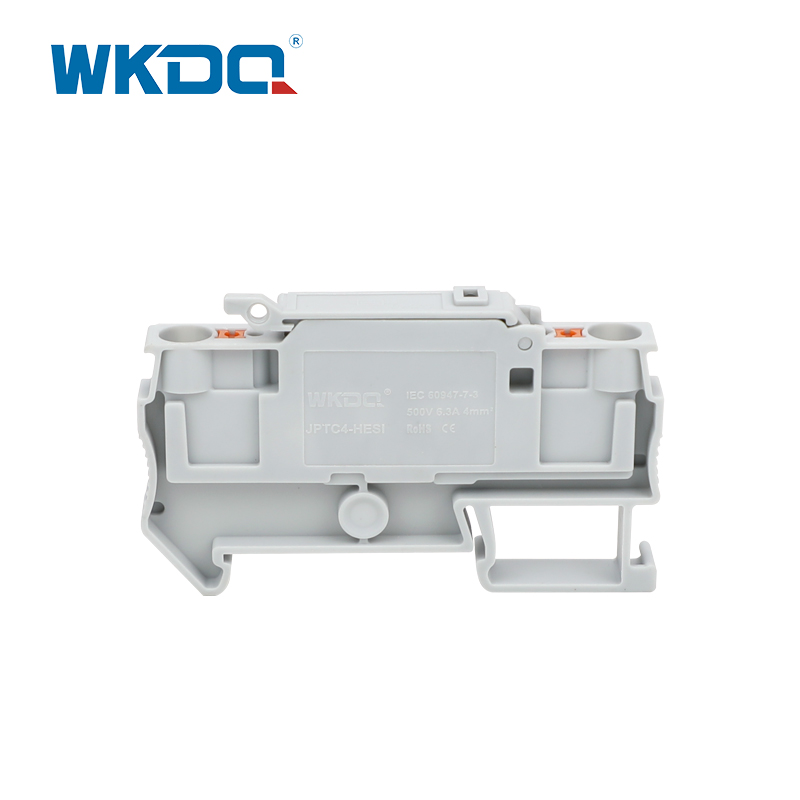

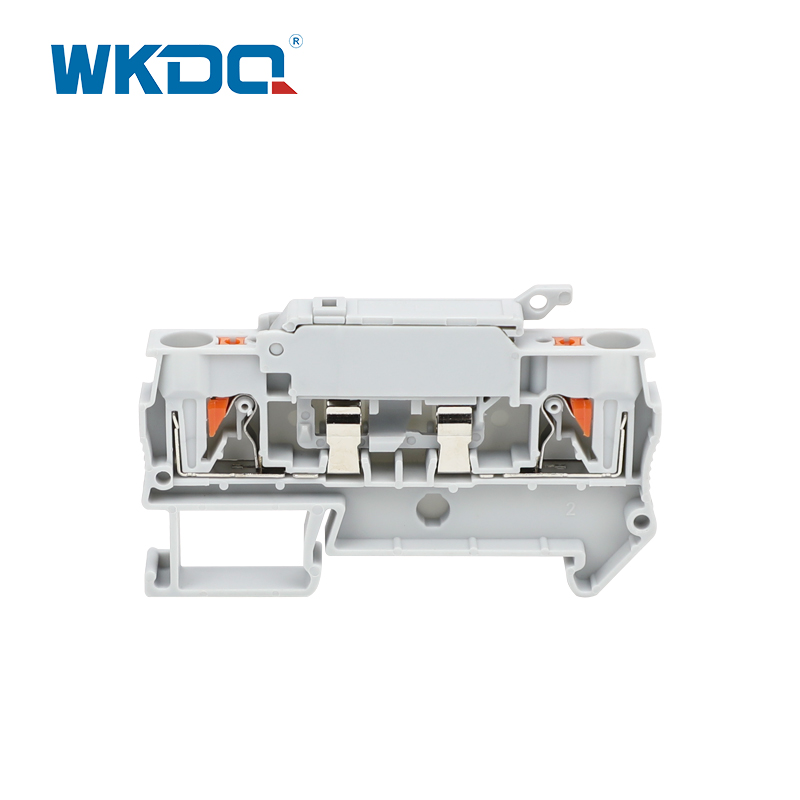

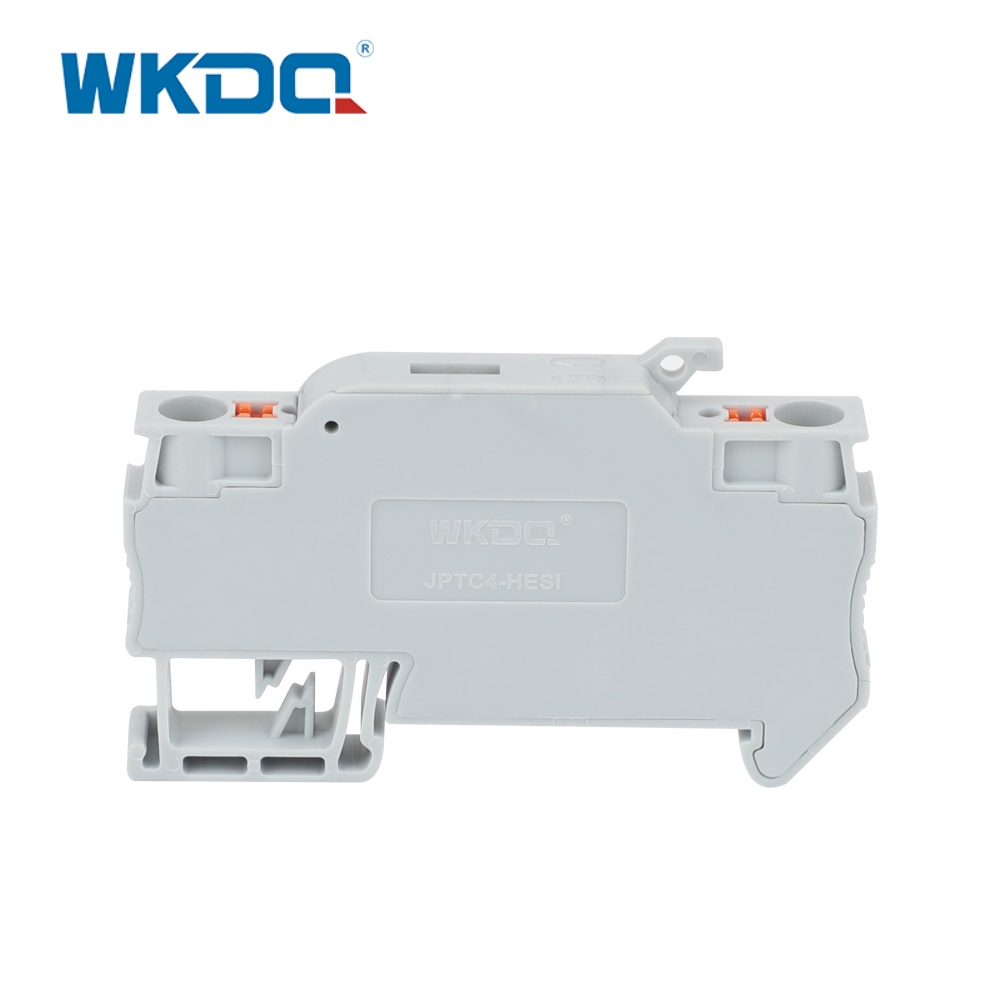

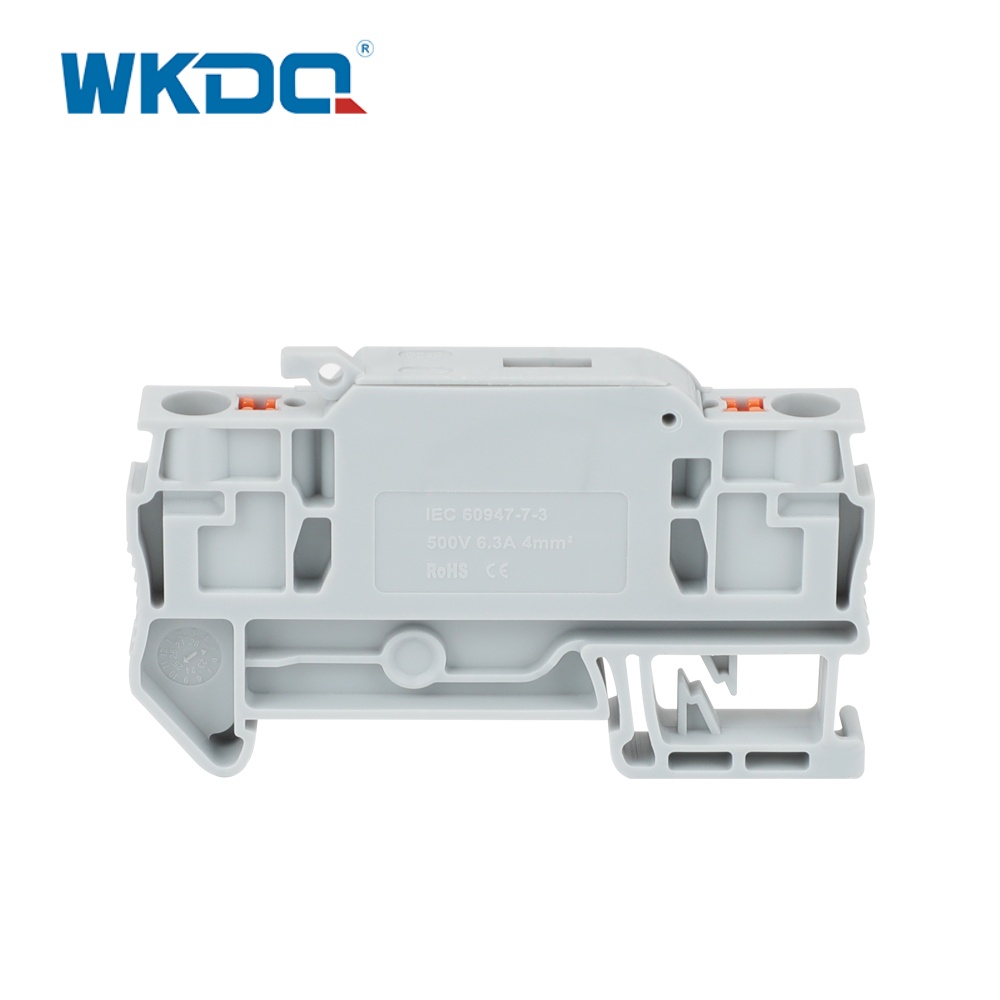

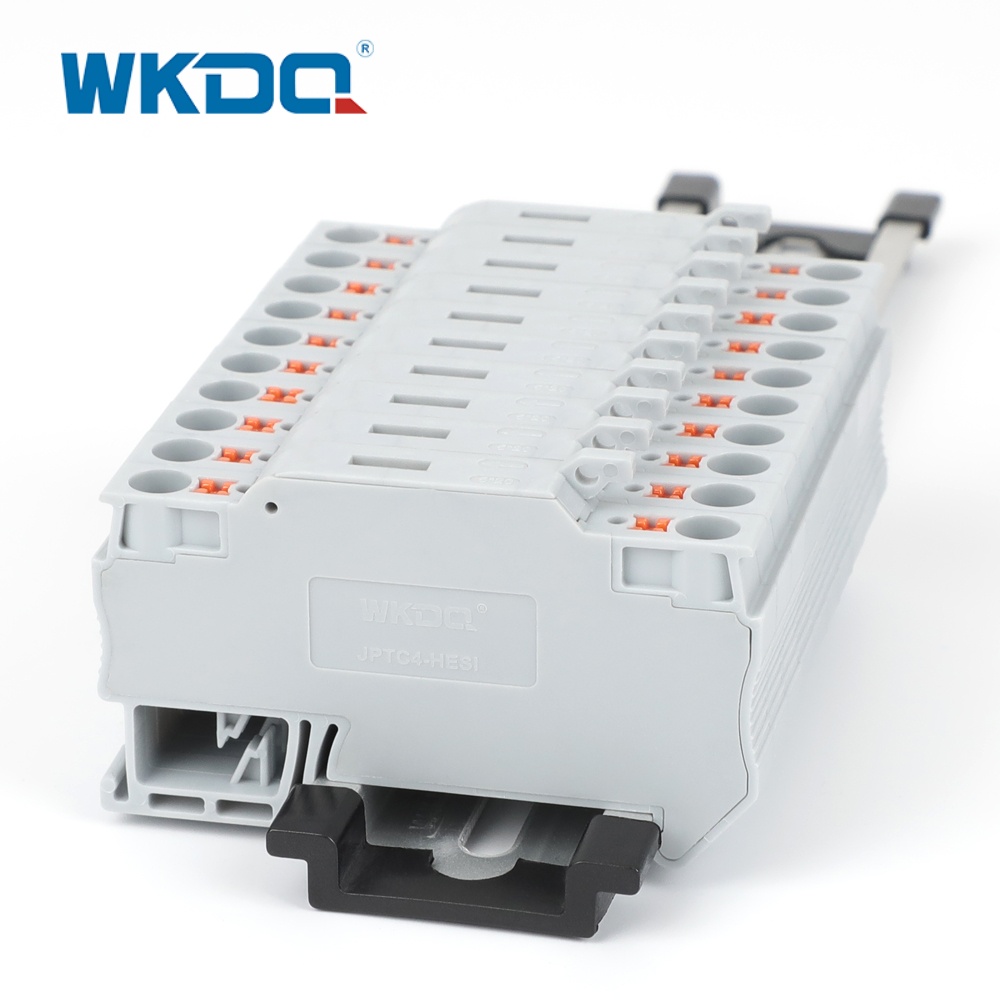

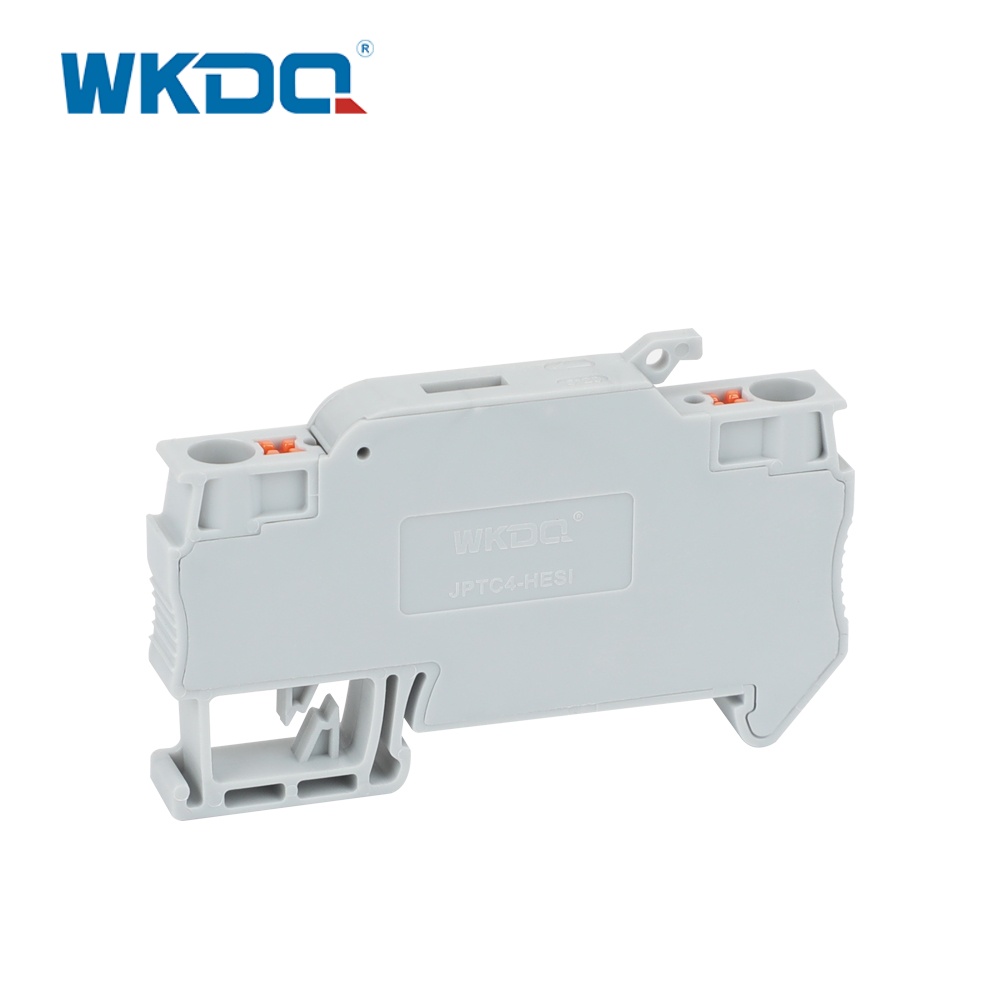

JPTC4-HESI

Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PAV0

Dimensions

Width/Length/Height(mm)

8.2/68.7/42.1

Maximum electrical data

Imax(A)

6.3

Umax(V)

500

Maximum bridge current(A)

-

Electric parameter

Rated voltage(V)

-

Nominal current(A)

6.3

Nominal cross section(mm2)

4

Connection capacity(mm2)

Rigid conductor

0.2-6

Flexible conductor

0.25-4

Ordering data

Push-in Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JPTC4-HESI

Grey

100105032

50

JPTC4-HESI BK

Black

100105032BK

50

-

Orange

-

-

-

Yellow

-

-

-

Green

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Push-in Ground Terminal Blocks

-

Yellow/Green

-

-

End cover

D-JPTC4-HESI

-

100203019

100

Partition plate

ATP-JST/JPT

-

100203012

150

Plug-in Bridge



Seats









2

-

Red

-

-

3

-

Red

-

-

4

-

Red

-

-

5

-

Red

-

-

10

-

Red

-

-

Marker strip




ZBFM6

Blank

100222025

100

ZBFM6

Standard numbers

100222026

100

ZBFM6

Customized words

100222027

100

Marker carrier


①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp


①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

WKF35/S

Grey

100223009

100

DIN rail


NS35-AL

(Aluminum

NS35-AL-0.91m

Sliver grey

100224034

100

NS35-AL-1.11m

Sliver grey

100224035

100

NS35-AL-1.31m

Sliver grey

100224001

100

NS35-AL-1.51m

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.91m

Color galvanized

100224038

100

NS35-S-1.01m

Color galvanized

100224005

100

NS35-S-1.21m

Color galvanized

100224007

100

Other length2Mcan be customized

DIN rail end cap




NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
