Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

3.5/65.7/40.8

Maximum electrical data

Imax(A)

16

Umax(V)

500

Maximum bridge current(A)

16

Electric parameter

Rated voltage(V)

500

Nominal current(A)

16

Nominal cross section(mm2)

1.5

Connection capacity(mm2)

Rigid conductor

0.14-1.5

Flexible conductor

0.14-1.5

Ordering data

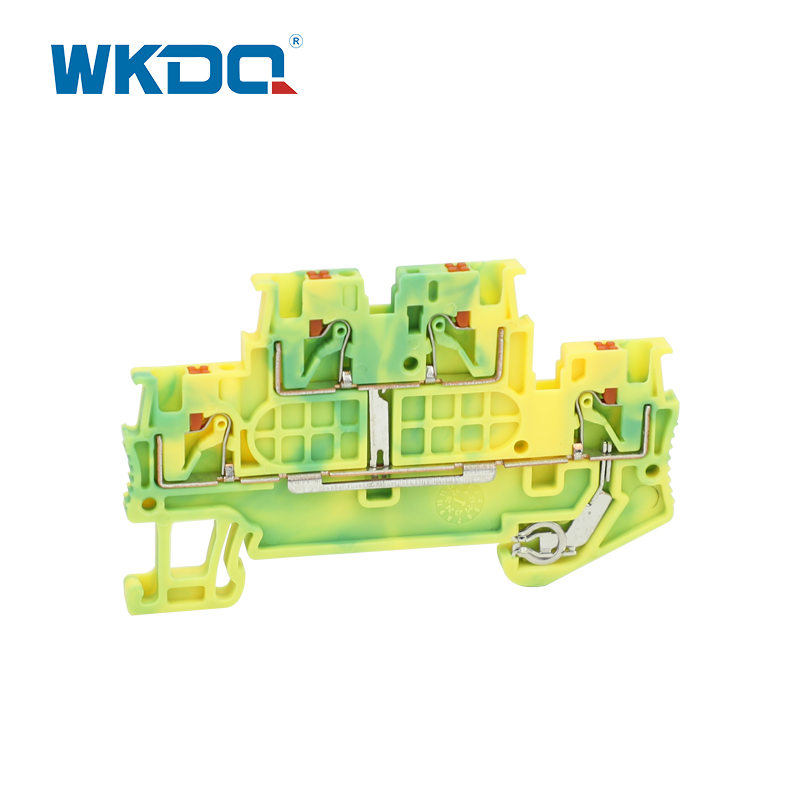

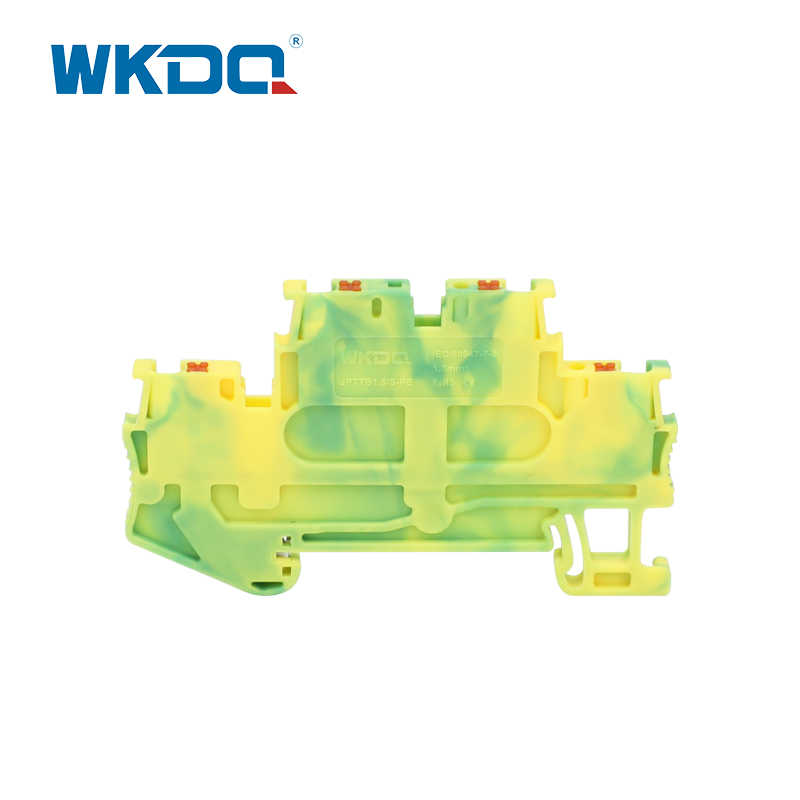

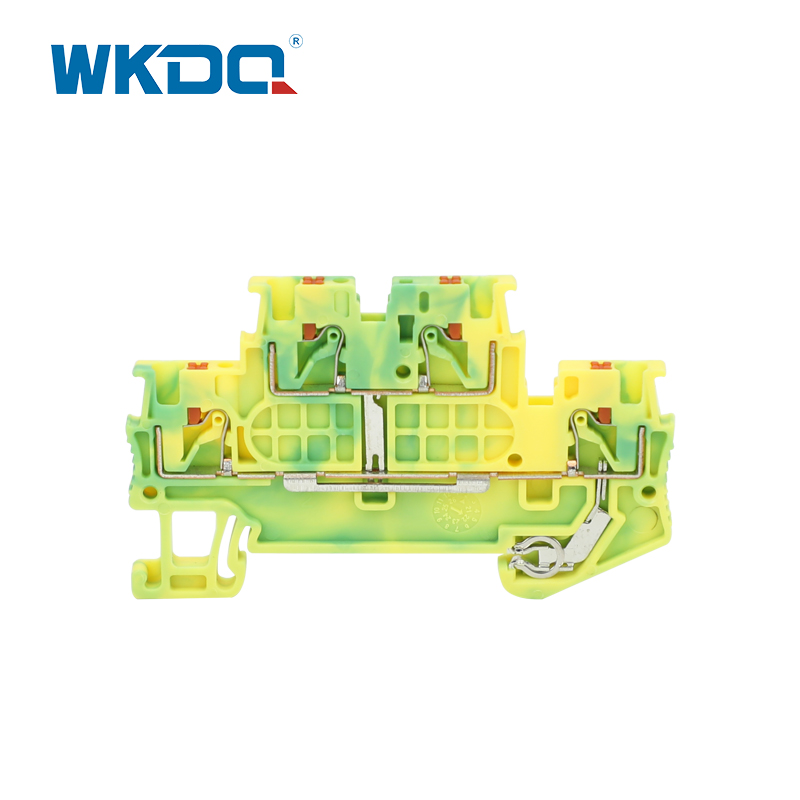

Push-in Ground Double Level Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JPTTB1.5/S-PE

Yellow/Green

100106013

100

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Push-in Double Level Terminal Blocks,with equipotential bonder

JPTTB1.5/S

Grey

100105013

100

JPTTB1.5/S BU

Blue

100105013BU

100

JPTTB1.5/S OG

Orange

100105013OG

100

-

Yellow

-

-

-

Green

-

-

End cover

D-JPTTB1.5/S

-

100203008

100

Partition plate

ATP-JST/JPT

-

100203012

150

Plug-in Bridge

Seats

2

FBS 2-3.5

Red

100212002

100

3

FBS 3-3.5

Red

100212003

100

4

FBS 4-3.5

Red

100212004

100

5

FBS 5-3.5

Red

100212005

100

10

FBS 10-3.5

Red

100212001

50

Marker strip

ZBFM3.5

Blank

100222019

100

ZBFM3.5

Standard numbers

100222020

100

ZBFM3.5

Customized words

100222021

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
