Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

8.2/75.2/43

Maximum electrical data

Imax(A)

52

Umax(V)

1000

Maximum bridge current(A)

41

Electric parameter

Rated voltage(V)

1000

Nominal current(A)

41

Nominal cross section(mm2)

6

Connection capacity(mm2)

Rigid conductor

0.5-10

Flexible conductor

0.5-6

Ordering data

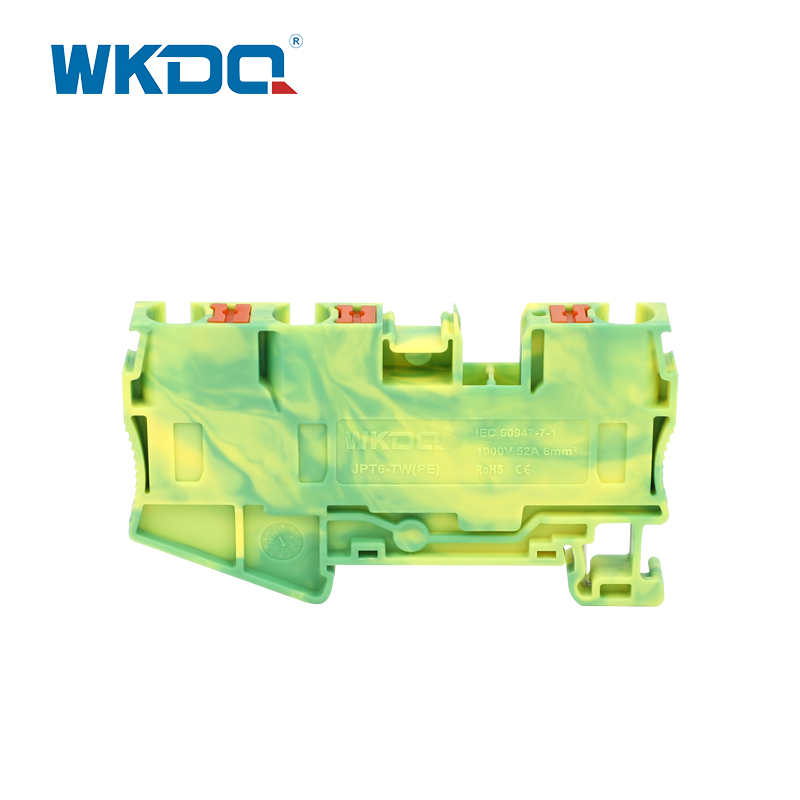

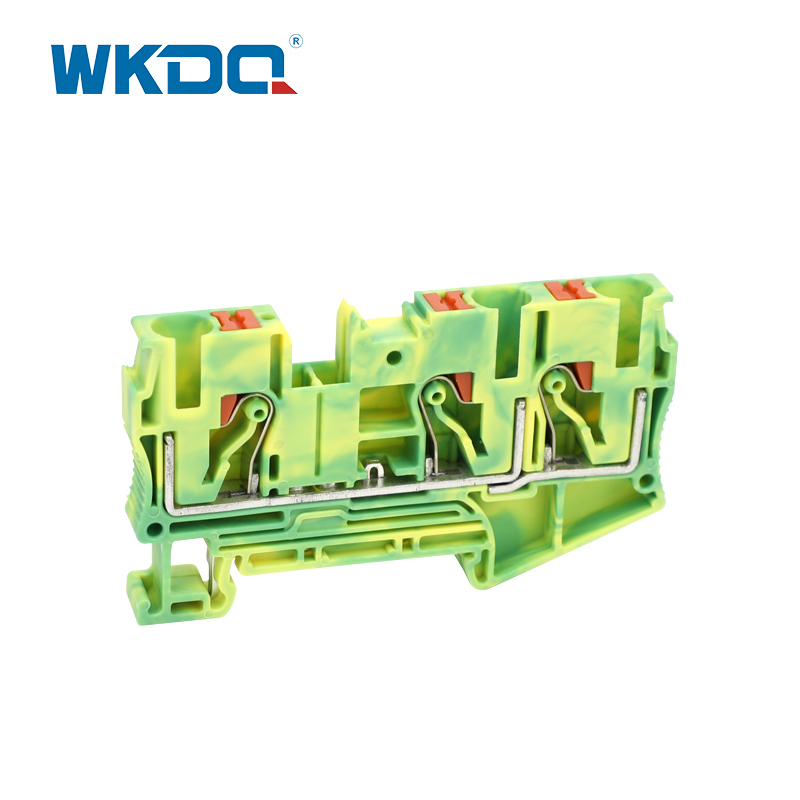

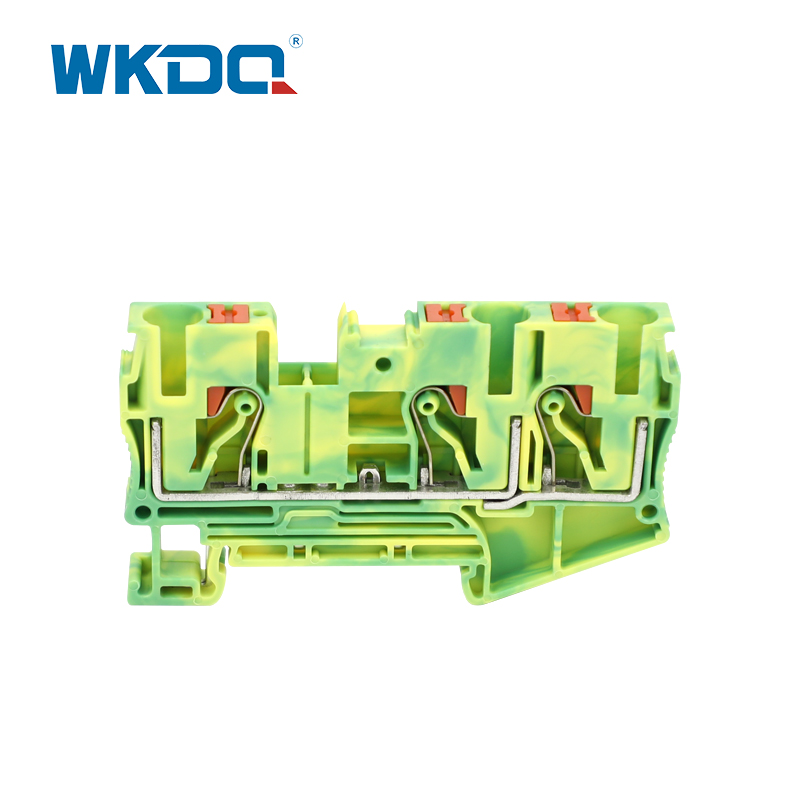

1 IN 2 OUT Push-in Ground Terminal  Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JPT6-TW-PE

Yellow/Green

100106016

50

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

1 IN 2 OUT Push-in Terminal Blocks

JPT6-TW

Grey

100105035

50

JPT6-TW BU

Blue

100105035BU

50

JPT6-TW OG

Orange

100105035OG

50

-

Yellow

-

-

-

Green

-

-

End cover

D-JPT6-TW

-

100203014

-

Partition plate

ATP-JST/JPT

-

100203012

150

Plug-in Bridge

Seats

2

FBS 2-8

Red

100212022

100

3

FBS 3-8

Red

100212023

100

4

FBS 4-8

Red

100212024

100

5

FBS 5-8

Red

100212025

100

10

FBS 10-8

Red

100212021

50

Marker strip

ZB8

Blank

100222013

100

ZB8

Standard numbers

100222014

100

ZB8

Customized words

100222015

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
