Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

6.2/77.2/36

Maximum electrical data

Imax(A)

36

Umax(V)

800

Maximum bridge current(A)

32

Electric parameter

Rated voltage(V)

800

Nominal current(A)

32

Nominal cross section(mm2)

4

Connection capacity(mm2)

Rigid conductor

0.2-6

Flexible conductor

0.2-4

Ordering data

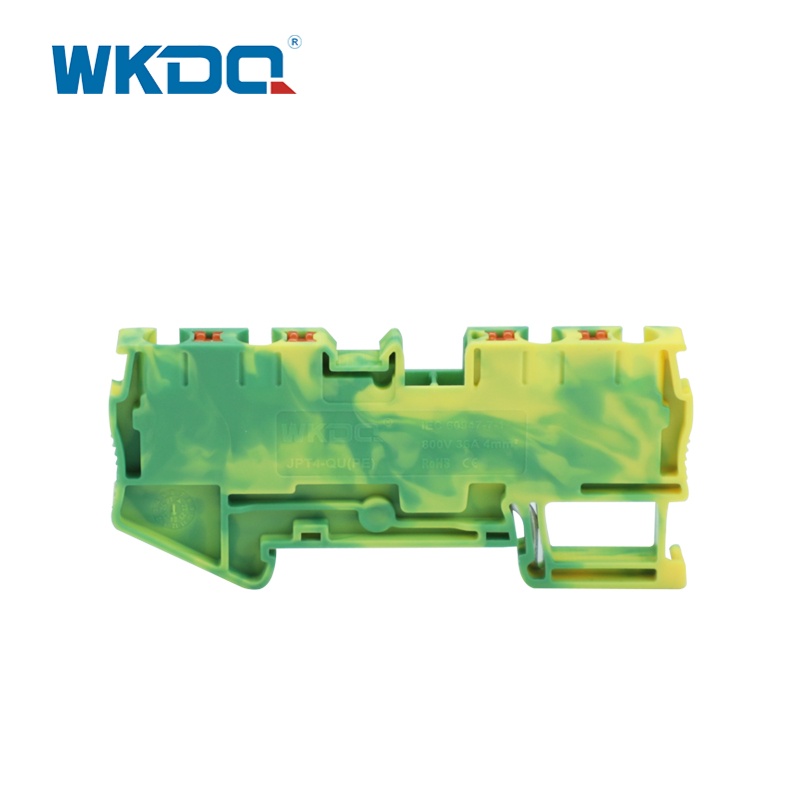

2 IN 2 OUT Push-in Ground Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JPT4-QU-PE

Yellow/Green

100106012

50

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

2 IN 2 OUT Push-in Terminal  Blocks

JPT4-QU

Grey

100105012

50

JPT4-QU BU

Blue

100105012BU

50

JPT4-QU OG

Orange

100105012OG

50

-

Yellow

-

-

-

Green

-

-

End cover

D-JPT4-QU

-

100203007

100

Partition plate

ATP-JST/JPT

-

100203012

150

Plug-in Bridge

Seats

2

FBS 2-6

Red

100212017

200

3

FBS 3-6

Red

100212018

100

4

FBS 4-6

Red

100212019

100

5

FBS 5-6

Red

100212020

100

10

FBS 10-6

Red

100212016

50

Marker strip

Central marker

ZB6

Blank

100222010

100

ZB6

Standard numbers

100222011

100

ZB6

Customized words

100222012

100

Side and center markings

ZBFM6

Blank

100222025

100

ZBFM6

Standard numbers

100222026

100

ZBFM6

Customized words

100222027

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
