Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

3.5/54.5/31

Maximum electrical data

Imax(A)

17.5

Umax(V)

500

Maximum bridge current(A)

17.5

Electric parameter

Rated voltage(V)

500

Nominal current(A)

17.5

Nominal cross section(mm2)

1.5

Connection capacity(mm2)

Rigid conductor

0.14-1.5

Flexible conductor

0.14-1.5

Ordering data

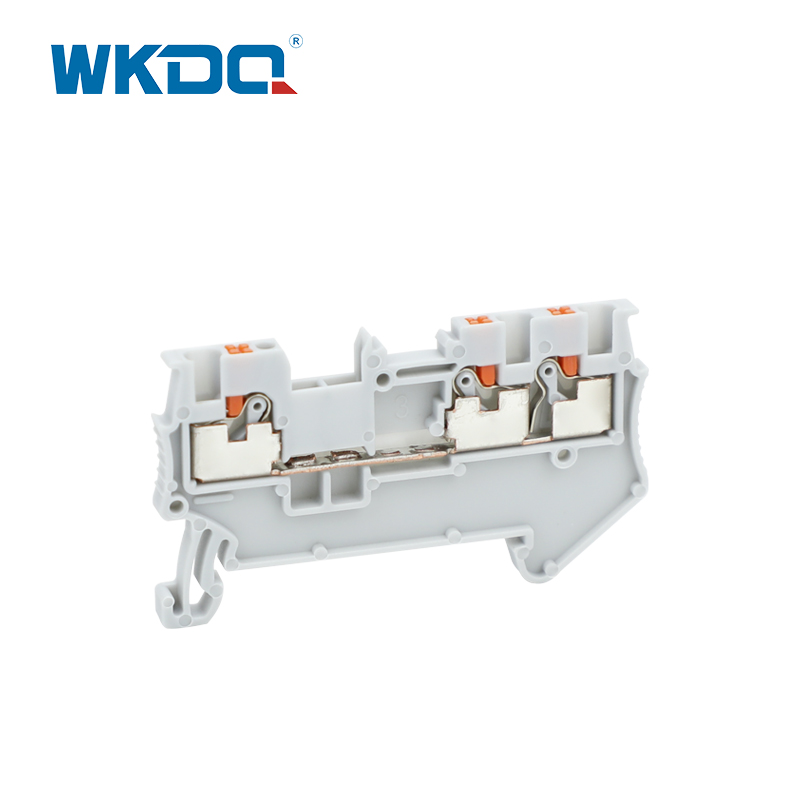

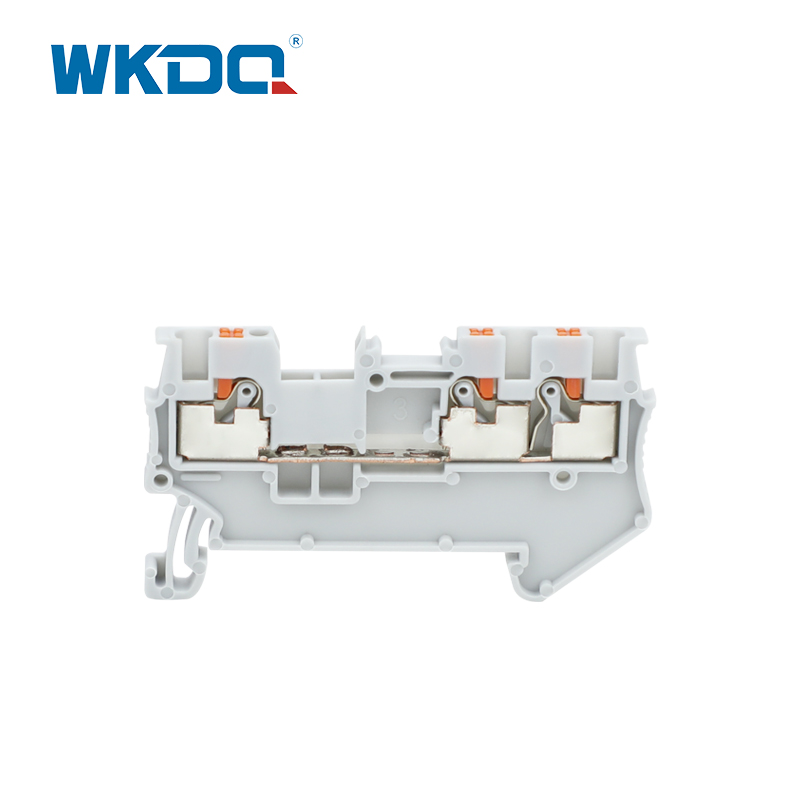

1 IN 2 OUT Push-in Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JPT1.5/S-TW

Grey

100105007

80

JPT1.5/S-TW BU

Blue

100105007BU

80

JPT1.5/S-TE OG

Orange

100105007OG

80

-

Yellow

-

-

-

Green

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

1 IN 2 OUT Push-in Ground Terminal Blocks

JPT1.5/S-TW-PE

Yellow/Green

100106007

80

End cover

D-JPT1.5/S-TW

-

100203005

100

Partition plate

ATP-JST/JPT-S

-

100203016

150

Plug-in Bridge

Seats

2

FBS 2-3.5

Red

100212002

100

3

FBS 3-3.5

Red

100212003

100

4

FBS 4-3.5

Red

100212004

100

5

FBS 5-3.5

Red

100212005

100

10

FBS 10-3.5

Red

100212001

50

Marker strip

Central marker

ZB3.5

Blank

100222001

100

ZB3.5

Standard numbers

100222002

100

ZB3.5

Customized words

100222003

100

Side and center markings

ZBFM3.5

Blank

100222019

100

ZBFM3.5

Standard numbers

100222020

100

ZBFM3.5

Customized words

100222021

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Grey

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Grey

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
