Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

18/58.6/61.3

Maximum electrical data

Imax(A)

125

Umax(V)

800

Maximum bridge current(A)

150

Electric parameter

Rated voltage(V)

800

Nominal current(A)

125

Nominal cross section(mm2)

35

Connection capacity(mm2)

Rigid conductor

2.5-16

Flexible conductor

2.5-35

Ordering data

Universal Ground Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

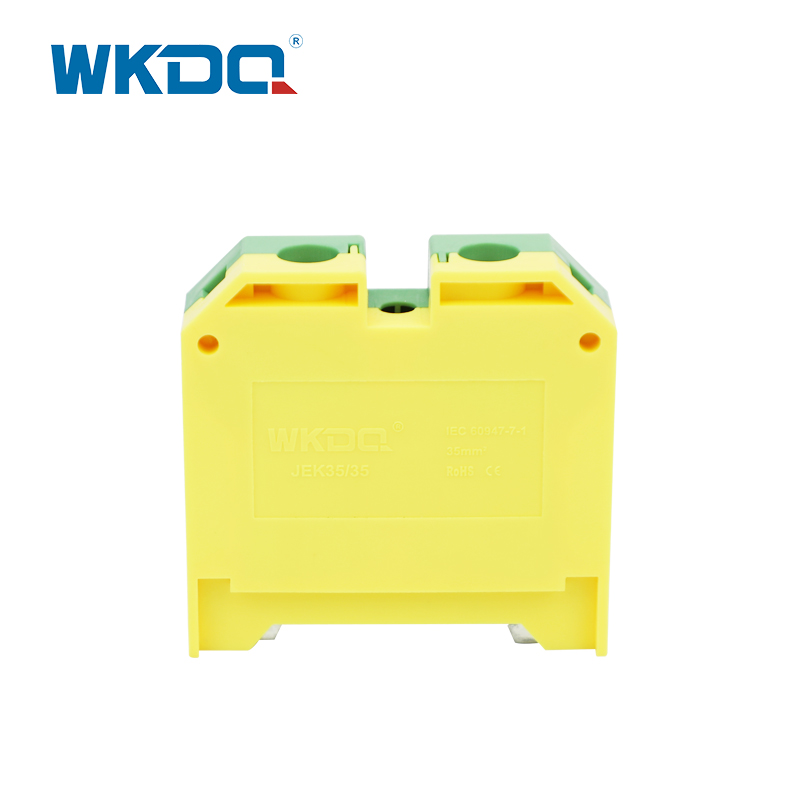

JEK35/35

Yellow/Green

100108006

20

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Universal Terminal Blocks

JSAK 35EN

Beige

100107007

20

JSAK 35EN GY

Grey

100107007 GY

20

JSAK 35EN BU

Blue

100107007 BU

20

End cover

AP 35

100104004

100

Partition plate

-

-

-

-

Fixed bridge

Seats

2

JSAK35Q2

Sliver

100213028

-

3

JSAK35Q3

Sliver

100213029

-

10

JSAK35Q10

Sliver

100213017

20

Marker strip

DEK 6

White(Blank)

100222028

100

DEK 6

White(Standard numbers)

100222029

100

DEK 6

White(Customized words)

100222030

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
