Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

10.2/71.5/49.6

Maximum electrical data

Imax(A)

65

Umax(V)

1000

Maximum bridge current(A)

57

Electric parameter

Rated voltage(V)

1000

Nominal current(A)

57

Nominal cross section(mm2)

10

Connection capacity(mm2)

Rigid conductor

0.2-16

Flexible conductor

0.25-10

Ordering data

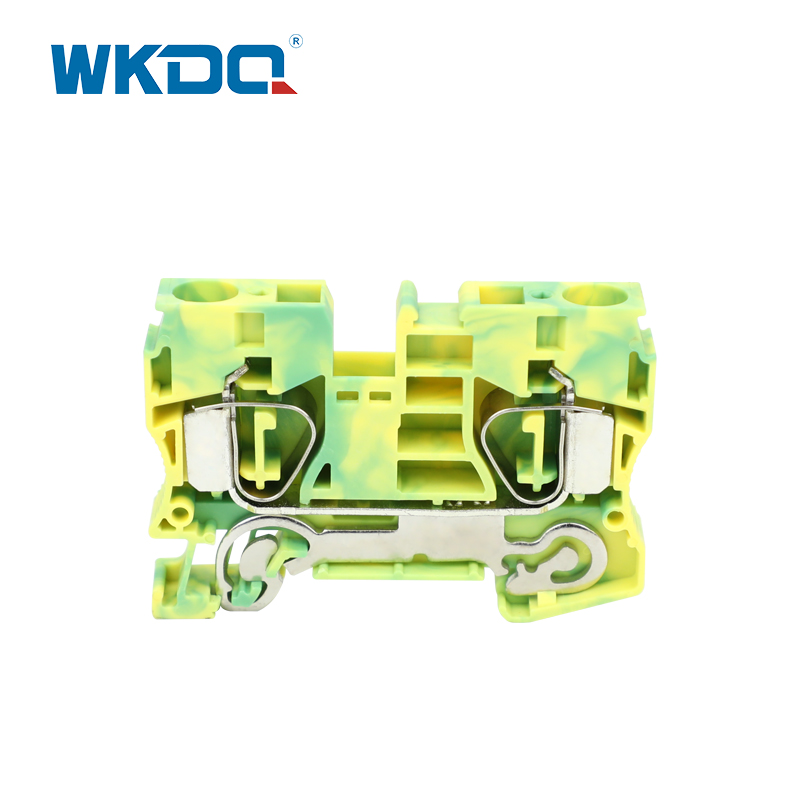

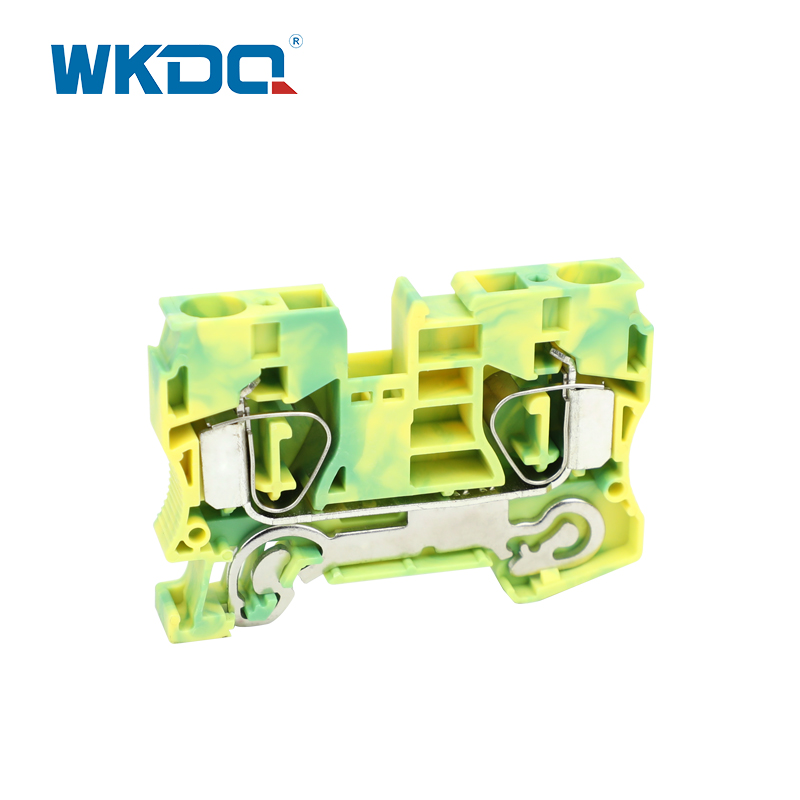

Spring-cage Ground Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

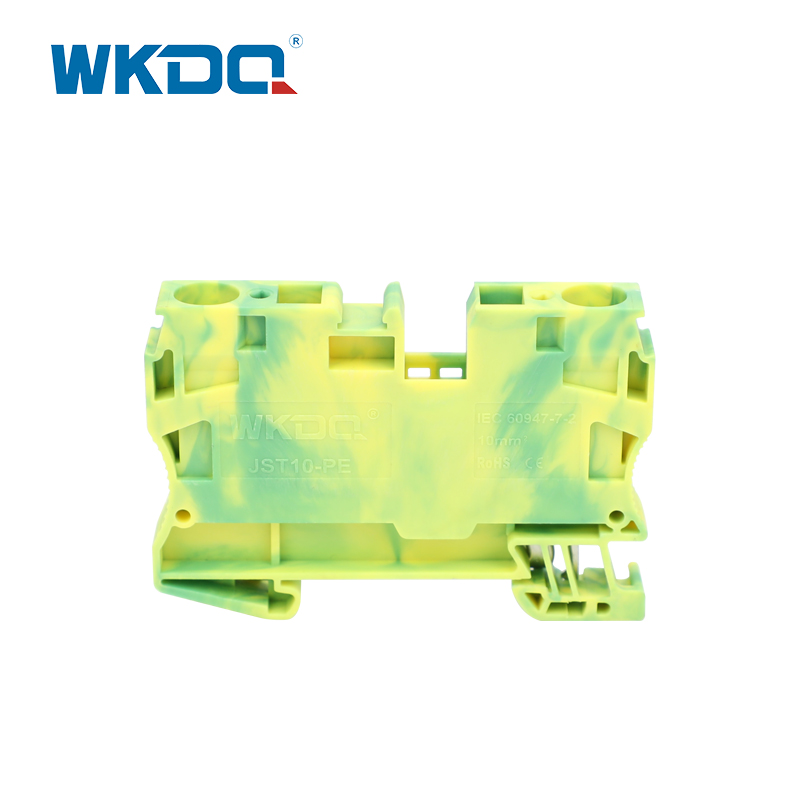

JST10-PE

Yellow/Green

100104005

40

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Spring-cage Terminal Blocks

JST10

Grey

100103005

40

JST10 BU

Blue

100103005BU

40

JST10 OG

Orange

100103005OG

40

End cover

D-JST10

-

100202004

100

Partition plate

ATP-JST/JPT

-

100203012

150

Plug-in Bridge

Seats

2

FBS 2-10

Red

100212026

50

3

-

Red

-

-

4

-

Red

-

-

5

-

Red

-

-

10

-

Red

-

-

Marker strip

ZB10

Blank

100222016

100

ZB10

Standard numbers

100222017

100

ZB10

Customized words

100222018

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
