Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

4.2/49/36

Maximum electrical data

Imax(A)

17.5

Umax(V)

500

Maximum bridge current(A)

17.5

Electric parameter

Rated voltage(V)

500

Nominal current(A)

17.5

Nominal cross section(mm2)

1.5

Connection capacity(mm2)

Rigid conductor

0.08-1.5

Flexible conductor

0.14-1.5

Ordering data

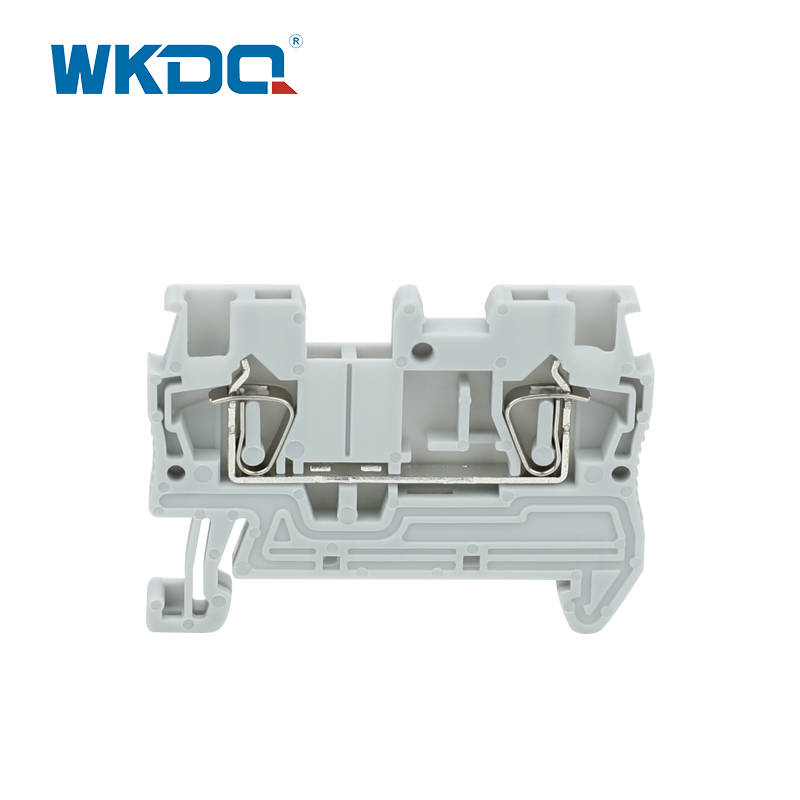

Spring-cage Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JST1.5

Grey

100103001

100

JST1.5BU

Blue

100103001BU

100

-

Orange

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Spring-cage Ground Terminal Blocks

JST1.5-PE

Yellow/Green

100104001

100

End cover

D-JST1.5-2.5

-

100202001

100

Partition plate

ATP-JST/JPT-S

-

100203016

150

Plug-in Bridge

Seats

2

FBS 2-4

Red

100212007

200

3

FBS 3-4

Red

100212008

100

4

FBS 4-4

Red

100212009

100

5

FBS 5-4

Red

100212010

100

10

FBS 10-4

Red

100212006

50

Marker strip

ZB4

Blank

100222004

100

ZB4

Standard numbers

100222005

100

ZB4

Customized words

100222006

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
