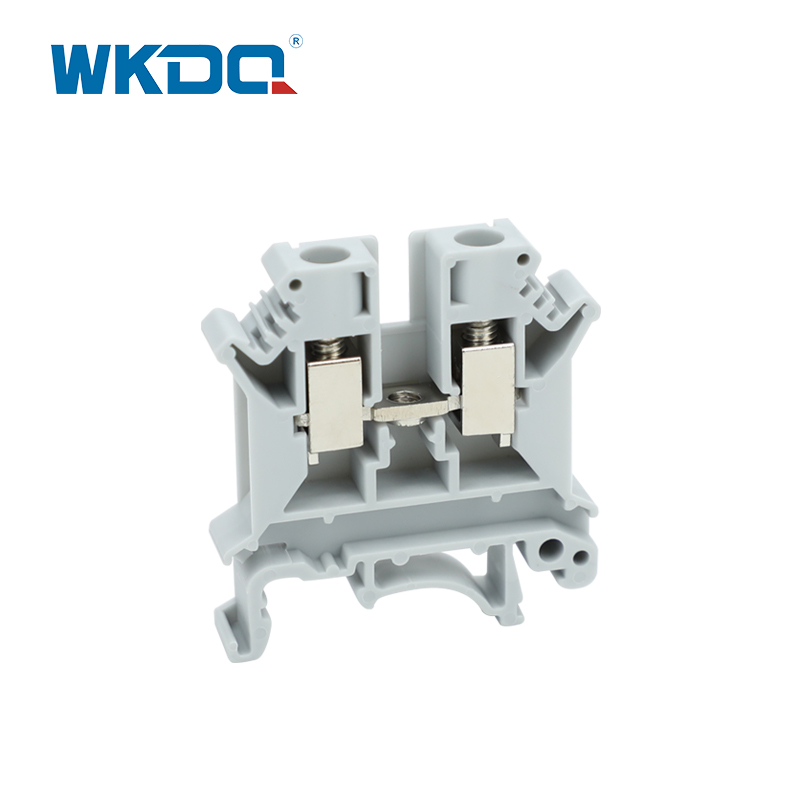

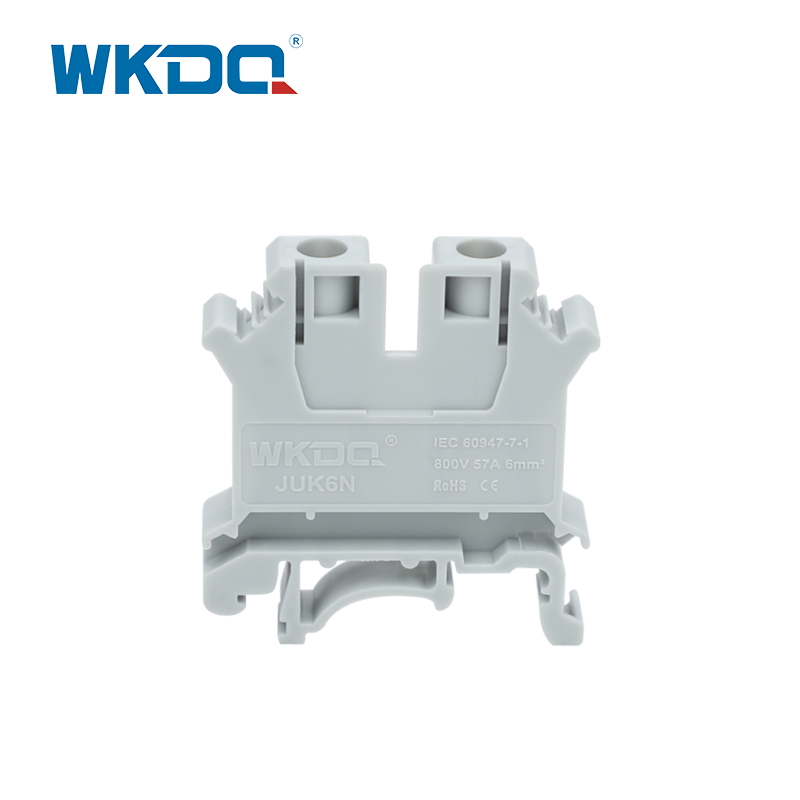

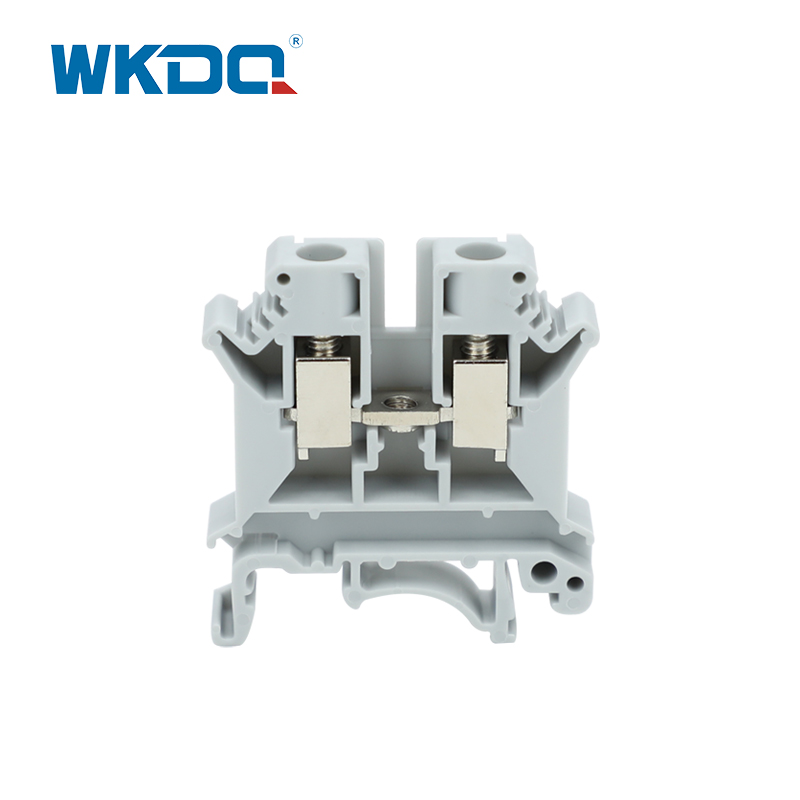

Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

8.2/42.546.2

Maximum electrical data

Imax(A)

57

Umax(V)

800

Maximum bridge current(A)

57

Electric parameter

Rated voltage(V)

800

Nominal current(A)

41

Nominal cross section(mm2)

6

Connection capacity(mm2)

Rigid conductor

0.2-10

Flexible conductor

0.25-6

Ordering data

Universal Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JUK6N

Grey

100101005

50

JUK6N BK

Black

100101005BK

50

JUK6N BU

Blue

100101005BU

50

JUK6N RD

Red

100101005RD

50

JUK6N YE

Yellow

100101005YE

50

JUK6N GN

Green

100101005GN

50

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Universal Ground Terminal Blocks

JUSLKG6N

Yellow/Green

100102004

50

End cover

D-JUK4/10

-

100201003

100

Partition plate

ATP-JUK

-

100201013

100

Separating plate

TS-K

100201015

1000

Fixed bridge

Seats

2

JFBI 2-8

Sliver

100211022

100

3

JFBI 3-8

Sliver

100211023

100

10

JFBI 10-8

Sliver

100211021

20

Insertion bridge

Seats

2

JEB 2-8

Grey

100211076

100

3

JEB 3-8

Grey

100211077

100

10

JEB 10-8

Grey

100211075

50

Marker strip

ZB8

White(Blank)

100222013

100

ZB8

White(Standard numbers)

100222014

100

ZB8

White(Customized words)

100222015

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
