Technical parameters

Circuit Diagram

11 00

Certificates

Insulating material, Flammability rating

-

Nominal cross section

(mm2)

AWG16-2

Connection capacity(mm2)

Solid wire

1.5-35

Stranded wire

1.5-35

Ordering data

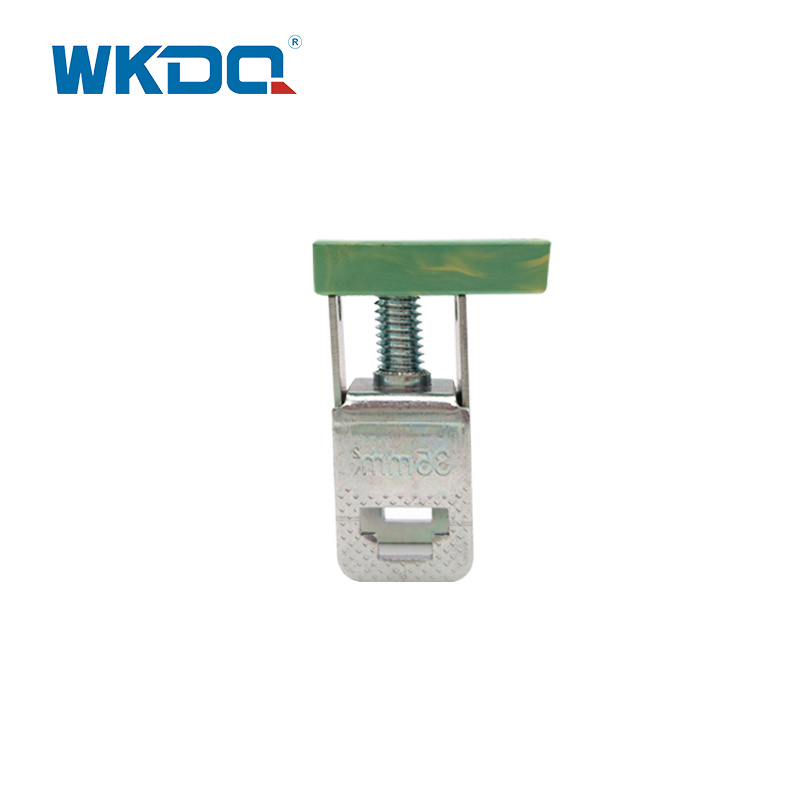

Busbar Connection Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

JAKG35

Black

100701003

100

JAKG35 BU

Blue

100701003BU

100

JAKG35 PE

Yellow/Green

100701003PE

100

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Neutral copper busbar

CU3*10

-

100701004

-

Support bracket

Part No.

Color

Order No.

Pcs/Pkt.

Buckle form

JAB/SS

Grey

100702001

100

Screw form

JAB/SS-2

Grey

100702002

100

Double bracket

JAB/2SS

Grey

100702003

100

Triple bracket

JAB/3SS

Grey

100702004

100

Marker strip

ZB8

Blank

100222013

100

ZB8

Standard numbers

100222014

100

ZB8

Customized words

100222015

100
