Technical parameters

Circuit Diagram

11 0

Certificates

Insulating material, Flammability rating

-

Nominal cross section

(mm2)

AWG20-12

Connection capacity(mm2)

Solid wire

0.5-4

Stranded wire

0.5-4

Ordering data

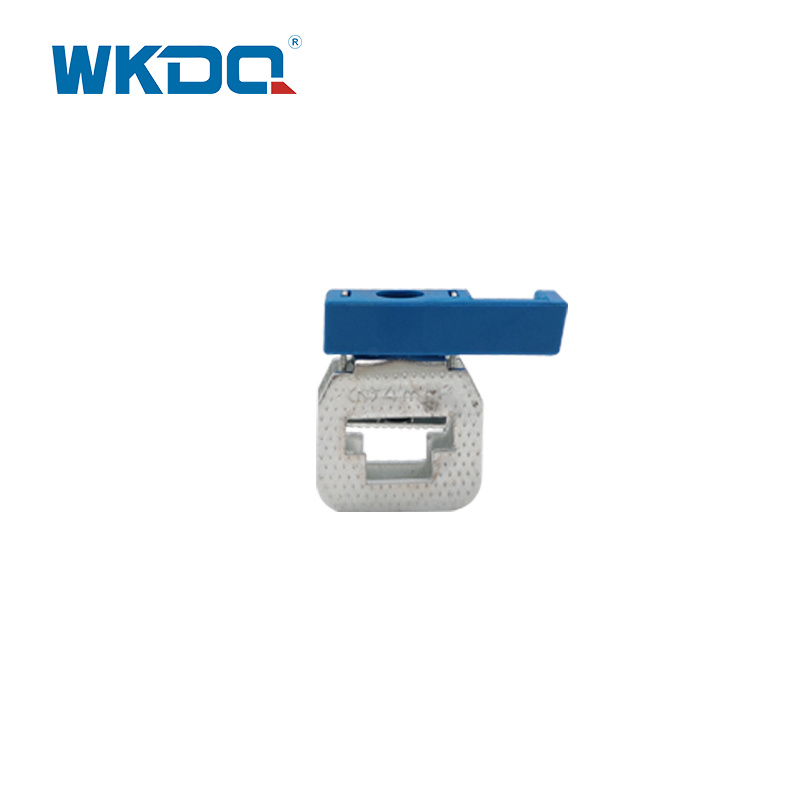

Busbar Connection Terminal Block

Part No.

Color

Order No.

Pcs/Pkt.

JAKG4

Black

100702004

100

JAKG4 BU

Blue

100701001BU

100

JAKG4 PE

Yellow/Green

100701001PE

100

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Neutral copper busbar

CU3*10

-

100701004

-

Support bracket

Part No.

Color

Order No.

Pcs/Pkt.

Buckle form

JAB/SS

Grey

100702001

100

Screw form

JAB/SS-2

Grey

100702002

100

Double bracket

JAB/2SS

Grey

100702003

100

Triple bracket

JAB/3SS

Grey

100702004

100

Marker strip

ZB5

Blank

100222007

100

ZB5

Standard numbers

100222008

100

ZB5

Customized words

100222009

100
