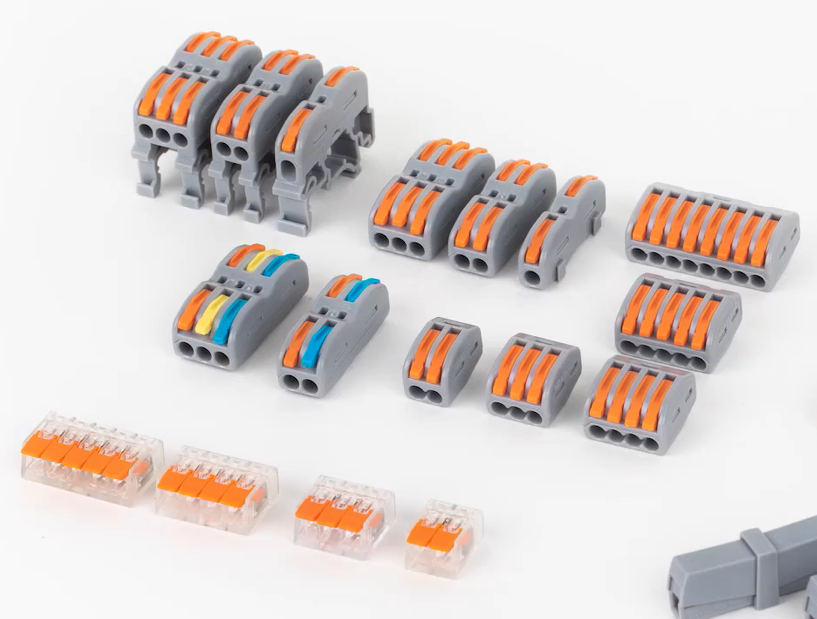

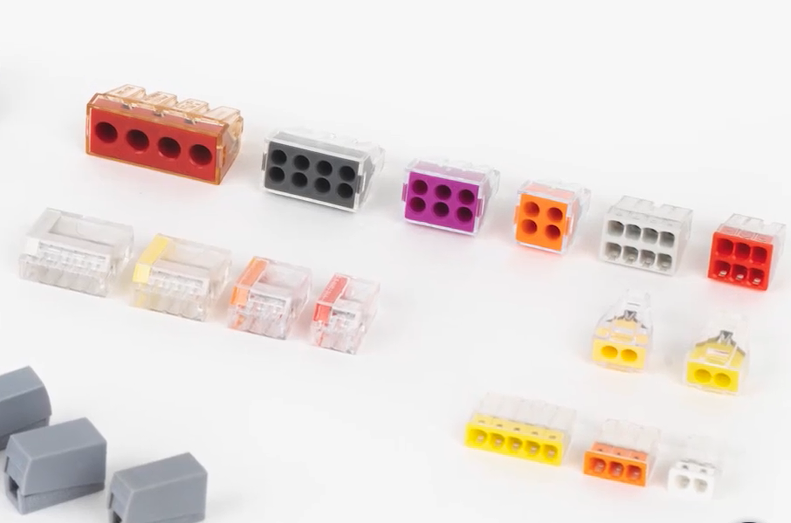

Quick wire connector series produced by Wonke Electric CO.,Ltd. It mainly replaces the black tape used by electricians in the home improvement industry to improve the performance of home integrated wiring and electrical performance and wiring strength. It cleverly uses the ingenious cage spring clamping technology (PUSH-WIRE) and has obtained international patents. It is suitable for single-core wires and multi-core hard wires. It has become popular abroad and in northern China.

    In home decoration projects, electrical tapes, wiring caps and other connections are prone to ageing, falling off, poor insulation performance and other reasons, resulting in potential safety hazards, which can easily cause personal injuries such as electric shocks or cause fires after short circuits. In addition, with the increase in the use of home appliances, the power load increases, such as poor contact at the wire connection (excessive resistance at the connection), high resistance and high current causing increased heat generation, which will be a huge safety hazard. This connector completely avoids the above safety hazards caused by poor connection; Quick wire connector uses ROHS standard materials, which is environmentally friendly; uses pure tin copper, low resistance, low electrical loss, and durable, and the shell is made of high-quality Flame-retardant nylon, reusable and energy-saving. This connector can be plugged in, and there are test holes for testing, which improves the construction efficiency of workers.

Method of operation

1.Strip the wire according to the length of the mark on the product (generally 10mm);

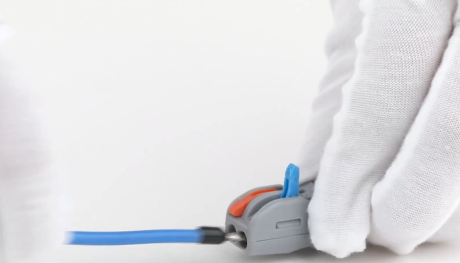

2.Wiring method: insert it straight and completely;

3. Disconnect method: turn left and right to pull out the wire;

4. The connector has test holes for testing.

   Significant advantages of quick wire connectors

   1. Safety: Long life, non-corrosive, anti-aging, pressure-resistant, high-temperature normal operation.

   2. Reliability: The spring clamping technology is reliable in connection and does not fall off. Since the tightening force can be automatically adjusted with the thickness of the wire, the wire contact is reliable and not affected by the installation technology. Therefore,  connector can make the wire connection reliable, anti-vibration and maintenance-free at any time and under any circumstances!

   3. High efficiency: There is no need for tools in use, just one plug in, which greatly reduces the time of wiring work. The use of  connectors is more than 80% more efficient than traditional connection methods. Each product has an installation test hole, which is convenient for installation, testing, and maintenance.
